Refurbished N9K-C9336PQ Technical Specifications

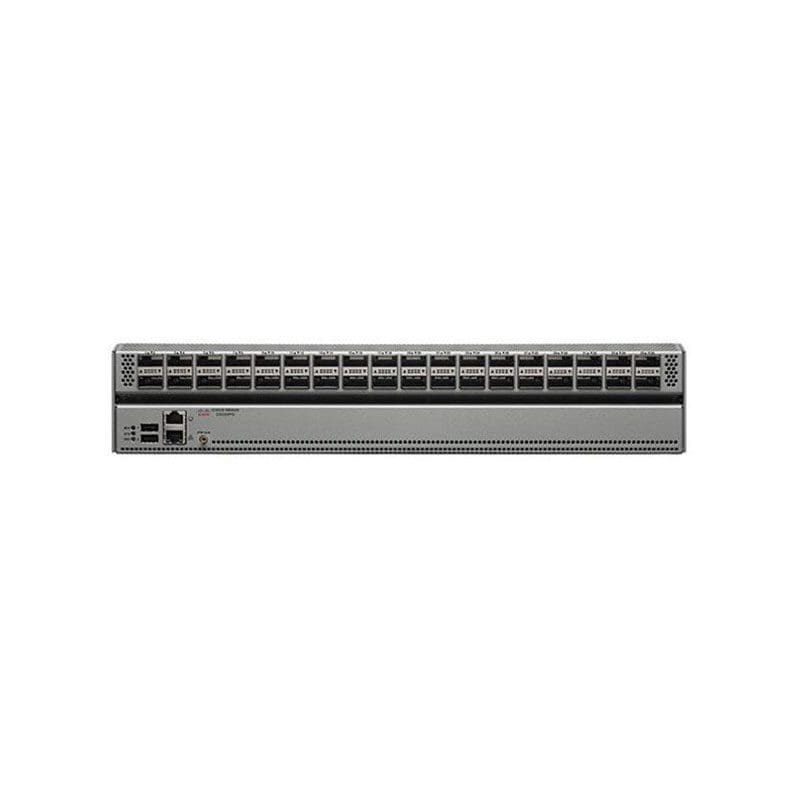

Cisco Nexus 9336 ACI Spine Switch with 36p 40G QSFP
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N9K-C9336PQ-RF
Brand Name Cisco
Product Line Nexus
Product Series 9300
Product Model 9336PQ
Product Name Nexus 9336 ACI Spine Switch with 36p 40G QSFP
Product Condition Refurbished
Product Type Ethernet Switch
Technical Information
Interfaces/Ports
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular Yes
Management Port No
USB No
Stack Port No
Port/Expansion Slot Details 36 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
I/O Expansions
Number of Total Expansion Slots 36
Expansion Slot Type QSFP
Network & Communication
Layer Supported 2
Management & Protocols
Manageable No
Power Description
PoE (RJ-45) Port No
Input Voltage 230 V AC
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 2U
Form Factor Rack-mountable
Height 3.5″
Width 17.4″
Depth 22.3″
Weight (Approximate) 34.40 lb
Miscellaneous
Certifications & Standards Safety:
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943
CE
Emissions:
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
Immunity:
EN55024
CISPR24
EN300386
KN 61000-4
Environmentally Friendly Yes
Environmental Certification RoHS-6, 80 Plus Platinum
