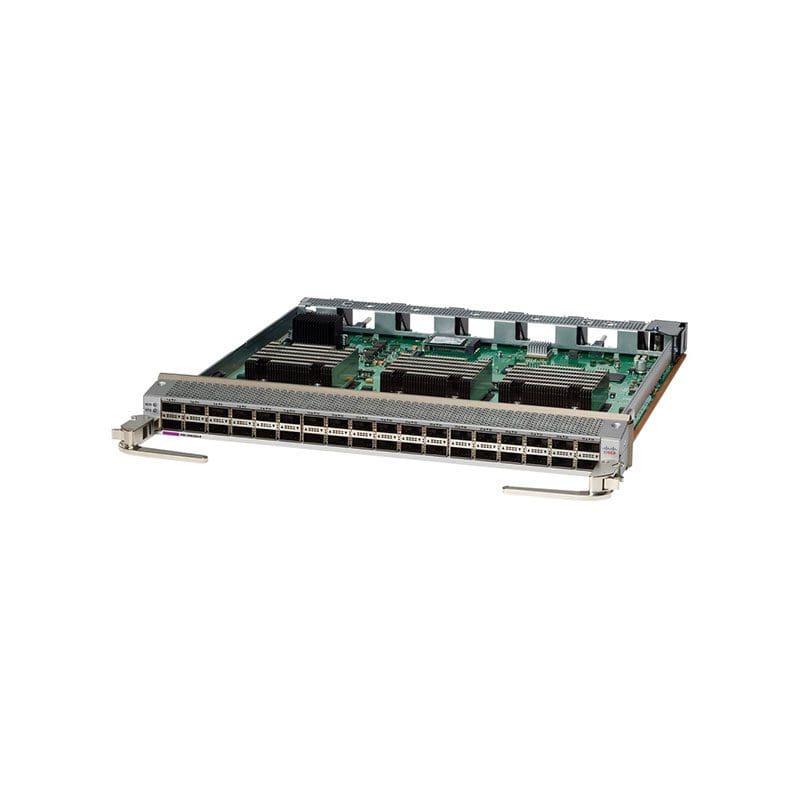

N9K-X96136YC-R Technical Specifications
Cisco Nexus 9500 R-Series Line Card Expansion Module
Performance
Type : Performance
Value : 1.2 Tbps
Ports
Qty : 16
Type : 10Gb Ethernet
Ports (2nd)
Qty : 32
Type : 10Gb Ethernet/25Gb Ethernet
Ethernet Technology: 25 Gigabit Ethernet
Ports (3rd)
Qty : 4
Type : 100 Gigabit Ethernet
RAM
Installed Size : 8 GB
Interface Provided
Connector Type : QSFP
Qty : 16
Type : 10Gb Ethernet
Qty : 36
Type : 10Gb Ethernet/25Gb Ethernet
Qty : 4
Type : 100Gb Ethernet
Networking
Connectivity Technology : Wired
Data Link Protocol : 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Features : 4GB packet buffer, MACsec support
Form Factor : Plug-in module
MAC Address Table Size : 750000 entries
Type : Expansion module
