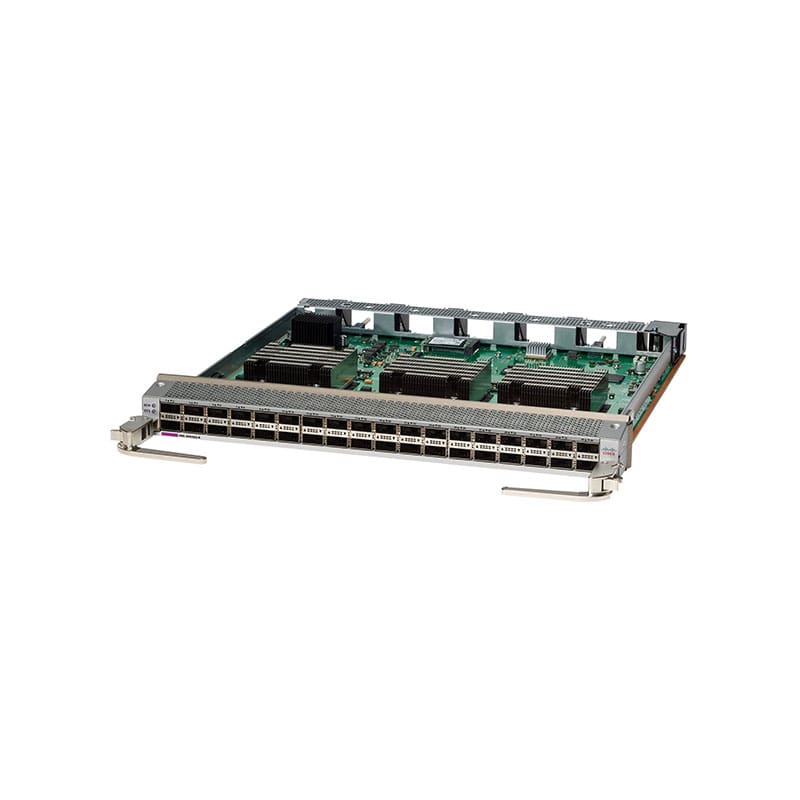

N9K-X9636Q-R Cisco 36 Port 40 Gigabit Ethernet QSFP Line Card
N9K-X9636Q-R Overview
This Cisco Nexus 9500R 36 Ports 40G QSFP+ Linecard is a high-performance, high-density linecard designed for the Cisco Nexus 9500R Series switches. It offers a range of performance and scalability features. The linecard supports up to 36 40G QSFP+ ports, providing high port density for large-scale data center networks. This allows network administrators to connect more devices to the network, improving overall network capacity and reducing the need for additional hardware.
$38,299
N9K-X9636Q-R Technical Specifications
Cisco 36 Port 40 Gigabit Ethernet QSFP Line Card
Brand: Cisco
Product Line: Cisco Nexus
Model: X9636Q-R
Manufacturer; CISCO DS HARDWARE DIRECT
Processor
Clock Speed: 2.4 GHZ
Memory
Flash Memory Installed: 32 GB
RAM Installed: 16 GB
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 40 Gigabit Ethernet
Form Factor: Plug-in module
Product Type: Expansion module
Connectivity
Interface Provided: 36 x 40Gb Ethernet – QSFP28
Port Quantity; 36
Network & Adapter Ports: 40 Gigabit QSFP28
Technical Information
MTBF: 220,550 Hours
Product Information
Packaged Quantity; 1
Forwarding performance: 1.4 Tbps
Dimensions & Weight
Weight: 11.46 lbs
Physical Characteristics
Color Category: Gray
