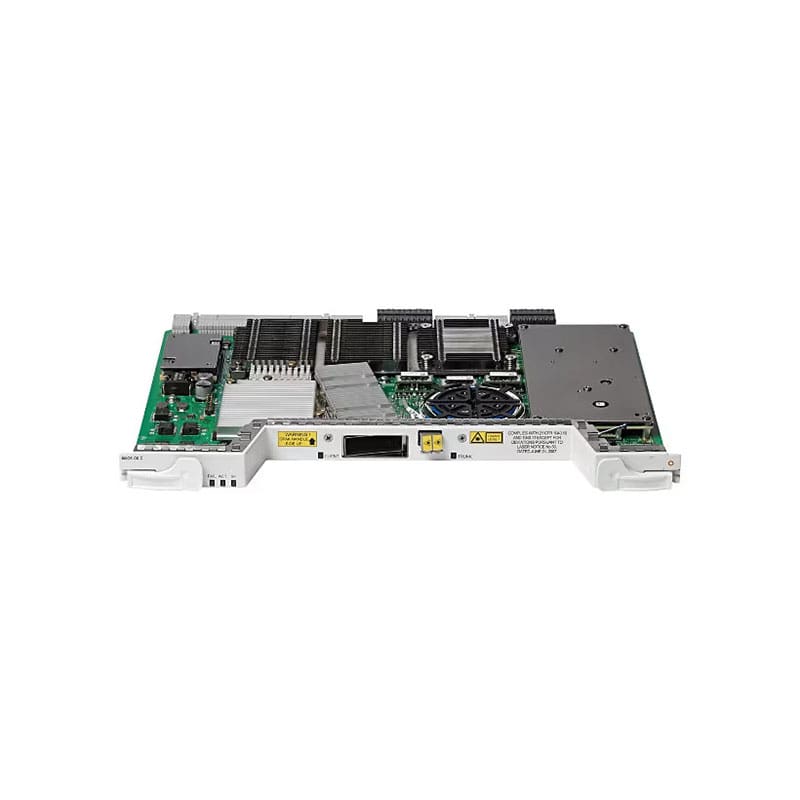

NCS2K-100G-CK-C= Cisco Network Convergence System Multi-Rate Line Card Expansion Module

NCS2K-100G-CK-C= Technical Specifications

Cisco Network Convergence System Multi-Rate Line Card Expansion Module

Brand: Cisco
Product Line: Cisco Network Convergence System
Model: Multi-Rate Line Card
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Cable Type: DWDM, Ethernet 100GBase-LR4, Ethernet 100GBase-SR10
Compliant Standards: ITU-T G.709
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Data Transfer Rate: 100 GBps
Form Factor: Plug-in module
Optical Wave Length: 1528.77-1566.72 nm
Product Type: Expansion module
Connectivity
Interface Provided: 1 – LC – x 2, 1 x 100Gb Ethernet – CPAK
Port Quantity1
Network & Adapter Ports: 100 Gigabit CPAK
Power
Power Consumption Operational: 163 watt
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 85% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Weight: 3.97 lbs
Physical Characteristics
Color Category: Gray
