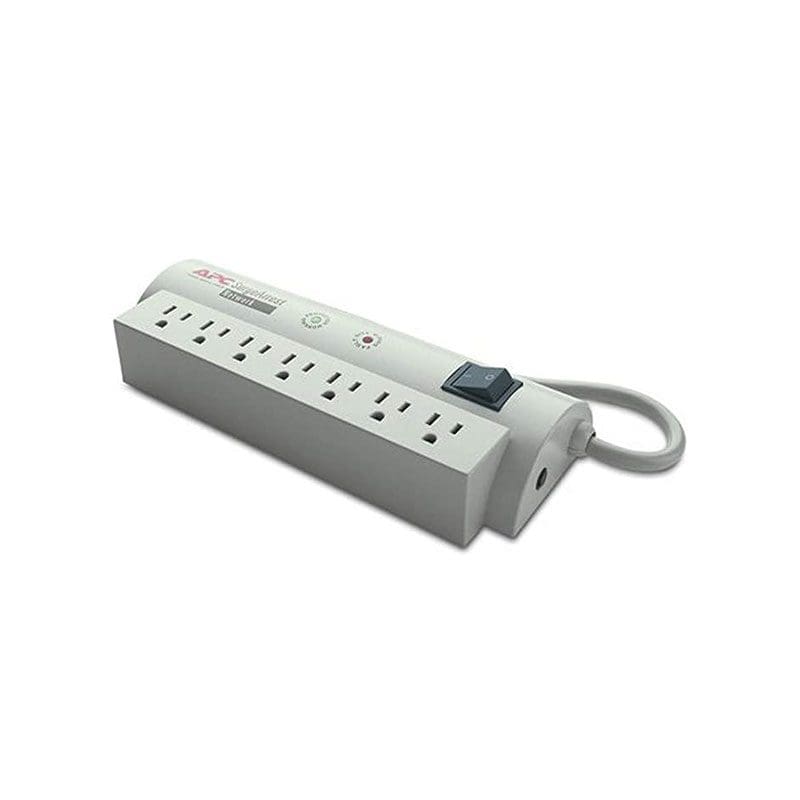

NET7 APC SurgeArrest Network Surge suppressor

NET7 Technical Specifications

APC SurgeArrest Network Surge suppressor

Manufacture Part No NET7
Manufacturer APC
Device Type Surge suppressor – external
Dimensions (WxDxH) 4.3 in x 10.5 in x 2 in
Enclosure Color Beige
Weight 2 lbs
Power Device
Circuit Protection Circuit breaker
EMI/RFI Noise Filtration 70 dB
Frequency Required 50/60 Hz
Input Connector(s) 1 x power NEMA 5-15
Input Voltage AC 120 V
Output Connector(s) 7 x power NEMA 5-15
Surge Energy Rating 480 Joules
Surge Response Time 0 ns
Surge Suppression Standard
Miscellaneous
Compliant Standards CSA, UL 1363, UL 1449, UL 1283
Equipment Protection Value 100000 US Dollars
Environmental Parameters
Humidity Range Operating 0 – 95%
Max Operating Temperature 104 F
113 F
Min Operating Temperature 32 F
Min Storage Temperature 5 F
