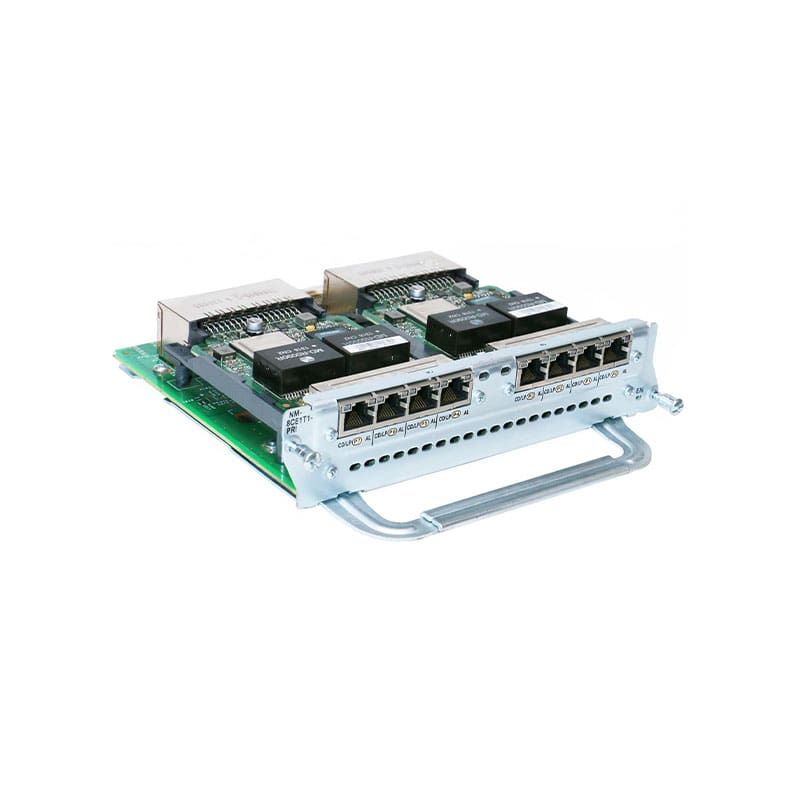

NM-8CE1T1-PRI= Cisco Channelized T1/E1 and ISDN PRI Network Module ISDN Terminal adapter PRI
NM-8CE1T1-PRI= Overview
This Cisco E1/T1 ISDN PRI Network Module’s integrated channel service unit (CSU) provides direct connection to the telecommunications network, thus allowing customers to consolidate customer premises equipment (CPE). This provides multifunction dial access aggregation, routing functionality, VPN and firewall security, and other capabilities right inside the Cisco router in power branch office environments. Both the 1-port and 2-port versions offer support for balanced and unbalanced E1 connectivity and conform easily to customers’ specific applications.
$7,469
NM-8CE1T1-PRI= Technical Specifications
Cisco Channelized T1/E1 and ISDN PRI Network Module ISDN Terminal adapter PRI
Brand: Cisco
Product Line: Cisco
Model: Channelized T1/E1 and ISDN PRI Network Module
Manufacturer: CISCO DS HARDWARE DIRECT
Modem
Digital Ports Quantity: 8
ISDN Terminal Adapter Interface: ISDN PRI
Modem Transmission Data Rate: 2.048 MBps
Expansion Slots
Compatible Slots Required: 1 x expansion slot
Connectivity
Interface Provided: 8 x modem – ISDN PRI – RJ-48C
Technical Information
Ethernet Technology: Wired
Fax Channels: 128
Form Factor: Internal
Line Rate: T-1/E-1
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95%
Product Information
Packaged Quantity: 1
Product Type: ISDN terminal adapter
Service Activation: No
Dimensions & Weight
Height: 1.6 inch
Weight: 1.39 lbs
Width: 7.1 inch
Depth: 7.3 inch
