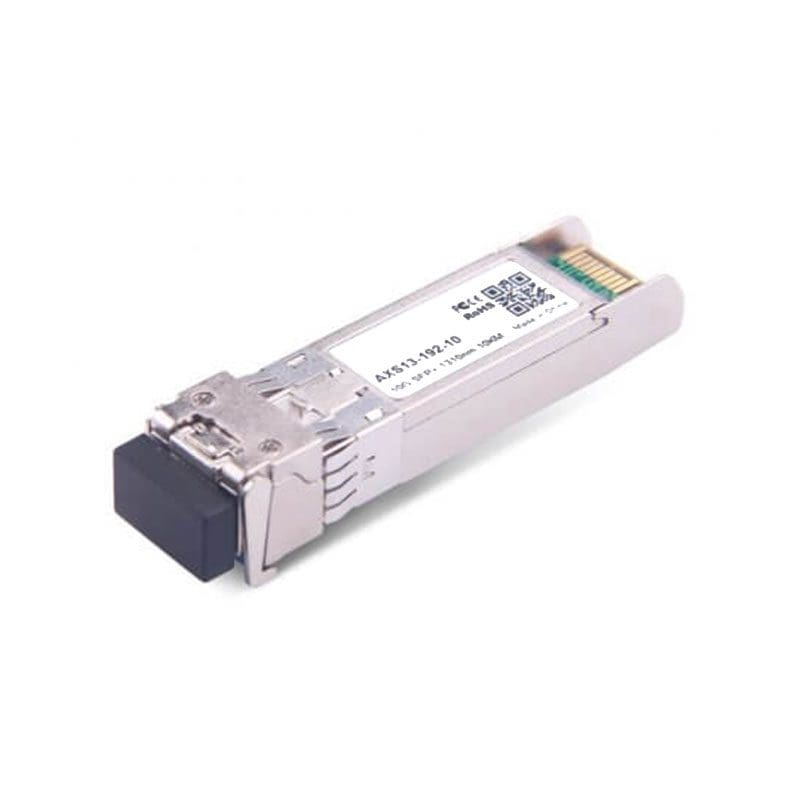

ONS-SC+-10G-LR Cisco 10GBPS STM64 Single-mode SFP+

ONS-SC+-10G-LR Technical Specifications

Cisco 10GBPS STM64 Single-mode SFP+

Manufacturer: Cisco Systems, Inc
Brand: Cisco
Operating data rate up to 11.1Gbps
1310nm DFB-LD Transmitter
Average Output Power:-8.2~0.5dBm
Receiver Sensitivity:-14.4dBm
Distance up to 10km
Device Type : Sfp+ Transceiver Module – Lc Single Mode
Form Factor : Plug-in Module
Cabling Type : 10gbase-lr
Data Transfer Rate : 10 Gbps
Optical Wave Length : 1260-1355 Nm
Data Link Protocol : 10 Gigabit Ethernet
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector Interface, Hot Pluggable
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE 802.3ae 10GBASE-LR/LW
Power Dissipation < 1.0W
Built-in Digital Diagnostic Function
Operating Case Temperature Standard : 0°C to +70°C
Product Condition: New Retail Factory Sealed
Warranty : 90 Days
