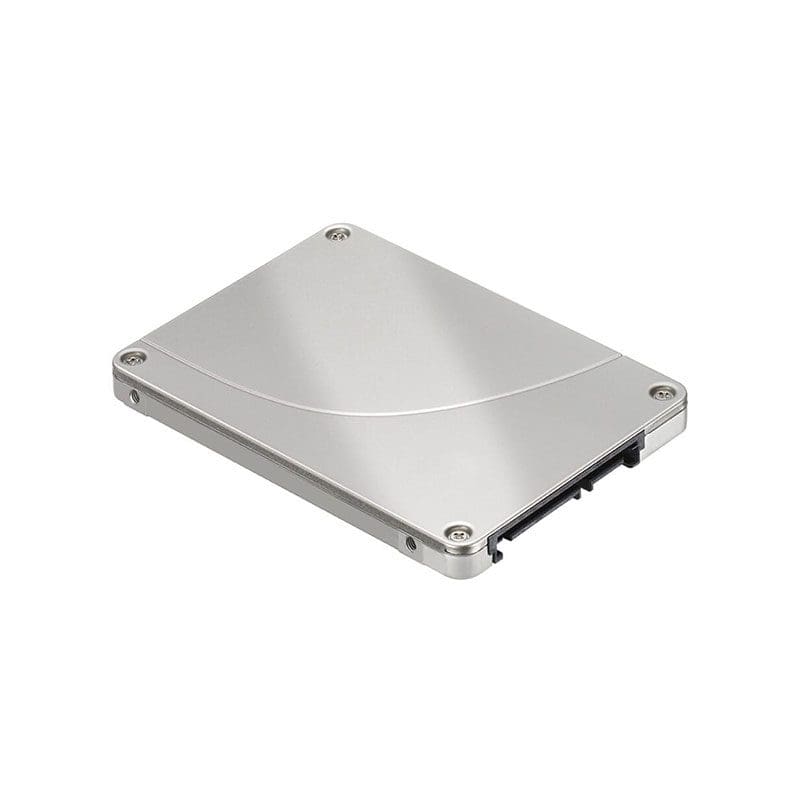

P04106-001 Technical Specification
HPE 3.84TB SATA 6GBPS 2.5inch SFF Hot Swap SC Read Intensive Digitally Signed Firmware Solid State Drive For Proliant GEN9 & GEN10 Server
MAIN SPECIFICATIONS:
Product Description : HPE Read Intensive – Solid State Drive – 3.84 TB – SATA 6GB/S
Type : Solid State Drive – Hot Swap
Capacity : 3.84TB
Nand Flash Memory Type : Multi-Level Cell (Mlc)
Form Factor : 2.5 Sff
Interface : Sata 6gb/S
Data Transfer Rate : 600 Mbps
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Dimensions (Wxdxh) : 0.3 In
Bundled With : Hpe Smart Carrier
Designed For : Proliant Dl120 Gen9, Dl120 Gen9 Entry, Dl160 Gen9, Dl160 Gen9 Base, Dl160 Gen9 Entry, Dl160 Gen9 Performance, Dl160 Gen9 Thoughtspot Server, Dl20 Gen9, Dl20 Gen9 Base, Dl20 Gen9 Entry, Dl20 Gen9 Performance, Dl20 Gen9 Special Server, Dl360 Gen10, Dl360 Gen10 Base, Dl360 Gen10 Entry, Dl360 Gen10 High Performance, Dl360 Gen10 Performance, Dl580 Gen10, Dl580 Gen9, Dl580 Gen9 Base, Dl580 Gen9 Database, Dl580 Gen9 High Performance, Ml110 Gen9, Ml110 Gen9 Base, Ml110 Gen9 Entry, Ml150 Gen9, Ml150 Gen9 Base, Ml150 Gen9 Entry, Ml150 Gen9 Performance, Ml30 Gen9, Ml30 Gen9 Base, Ml30 Gen9 Performance, Ml350 Gen9, Ml350 Gen9 Base, Ml350 Gen9 Entry, Ml350 Gen9 Performance, Xl170r Gen10, Xl190r Gen10
EXTENDED SPECIFICATIONS:
Device Type : Solid State Drive – Hot-Swap
Capacity : 3.84 Tb
Nand Flash Memory Type : Multi-Level Cell (Mlc)
Form Factor : 2.5 inch Sff
Interface : Sata 6Gb/s
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Height : 0.3 In
Bundled With : Hpe Smart Carrier
PERFORMANCE:
Drive Writes Per Day (Dwpd) : 1
Drive Transfer Rate : 600 Mbps (External)
Internal Data Rate : 500 Mbps (Read) / 445 Mbps (Write)
4kb Random Read : 59000 Iops
4kb Random Write : 30000 Iops
Maximum 4kb Random Write : 30000 Iops
Maximum 4kb Random Read : 63000 Iops
AVERAGE LATENCY : 60 µs
EXPANSION & CONNECTIVITY:
Interfaces : 1 X Sata 6 Gb/S
Compatible Bay : 2.5 Sff
POWER:
Power Consumption : 1.35 Watt (Idle) , 3 Watt (Random Read) , 5.44 Watt (Random Write) , 2.5 Watt (Sequential Read) , 5.28 Watt (Sequential Write)
