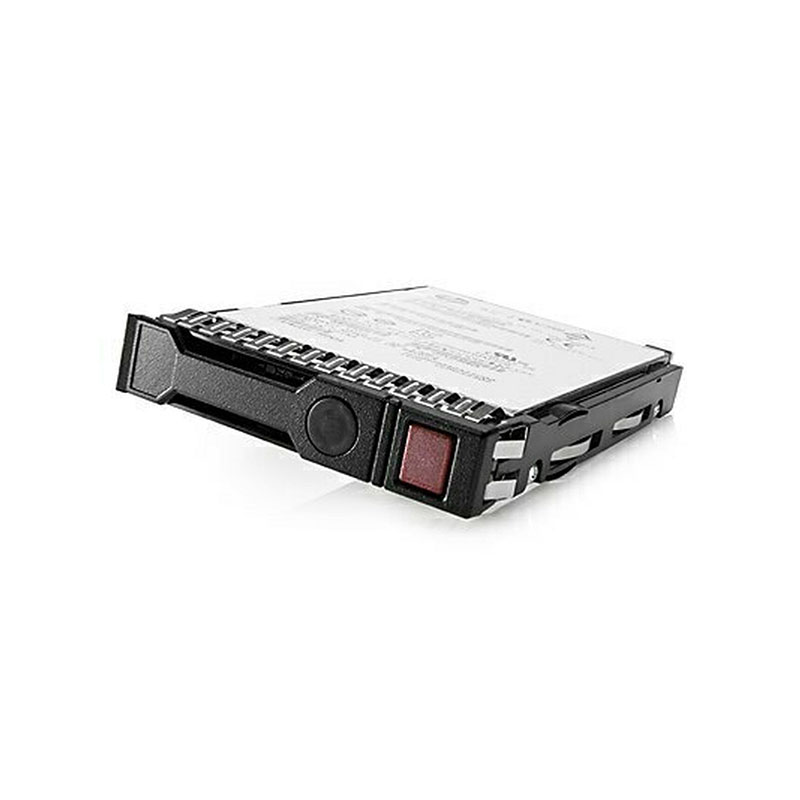

P04525-X21 HPE 400GB 2.5inch Small Form Factor SAS-12GBPS SC SSD

P04525-X21 Technical Specifications

HPE 400GB 2.5inch Small Form Factor DS MLC Serial-Attached SCSI (SAS) 12GBPS Multi-Level Cell (MLC) Digitally Signed Firmware Smart Carrier Solid State Drive for Server

Manufacturer: HPE
MPN: P04525-X21
Type: Solid State Drive
Sub -Type: SAS-12GBPS
Technical Information
Device Type: Solid State Drive – Hot-Swap
Capacity: 400 GB
Interface Type: SAS 12Gbps
Form Factor: 2.5-inch SFF
NAND Flash Type: MLC (Multi-Level Cell)
Byte per Sector: 512
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Pluggable
Workload Type: Mixed-Use
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive Carrier
Drive Performance
Lifetime Writes: 2190
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 95000
Random Write IOPS (4KiB, Q=16): 70000
MAX Seq. Reads Throughput (MiB/s): 1075
MAX Seq. Writes Throughput (MiB/s): 1025
Dimensions & Weight
Height: 0.63 Inch
Width: 3.10 Inch
Depth: 5.45 Inch
