P10216-X21 Technical Specifications

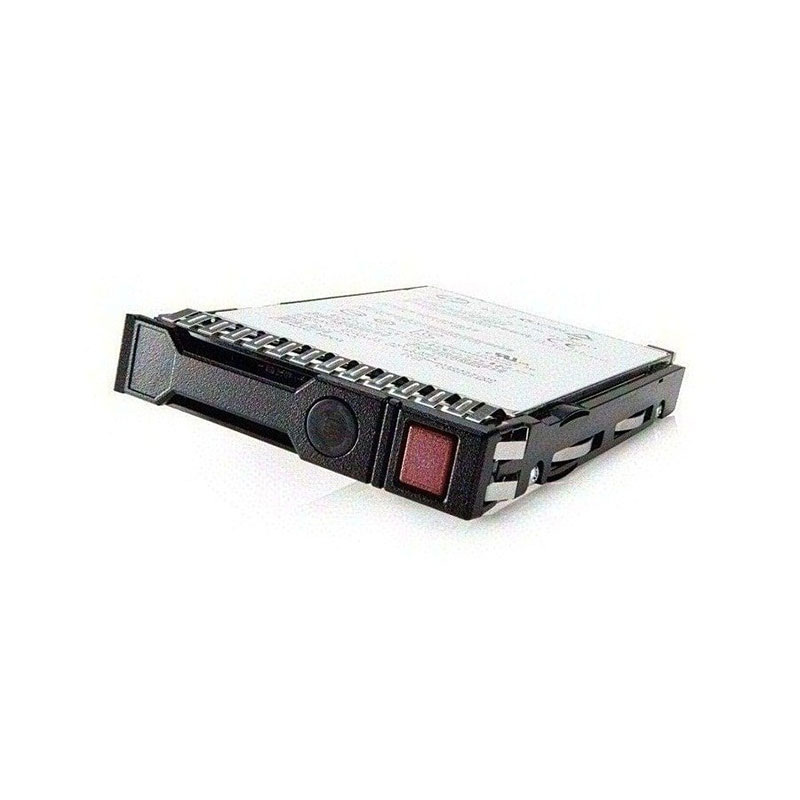

HPE 3.84TB Terabytes (TB) 2.5inch Small Form Factor (SFF) Non Volatile Memory Express (NVMe) Peripheral Component Interconnect Express(PCI-E) Solid State Drive for Server
Manufacturer : HPE
MPN : P10216-X21
Type : Internal Solid State Drive (SSD)
SSD Type : NVMe
Technical Information
Capacity: 3.84TB
Form Factor: 2.5 inch SFF
Interface: PCI Express x4 (NVMe)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier NVMe (SCN)
Features: Digitally Signed Firmware (DS)
Height: 15.00 mm (0.60 inch)
Performance
Lifetime Writes: 7000
Endurance DWPD (Drive Writes Per Day): 1
Random Read IOPS (4KiB, Q=16): 165000
Random Write IOPS (4KiB, Q=16): 74000
MAX Random Read IOPS (4KiB): 780000@Q256
MAX Random Write IOPS (4KiB): 75000@Q16
Power
Power Consumption: 7.20 Watt
Dimensions & Weight
Height: 5.50 inch (13.97 cm)
Width: 7.25 inch (18.41 cm)
Depth: 8.75 inch (22.23 cm)
Weight: 1.799 lbs (0.82 kg)
