P11605-001 Technical Specifications

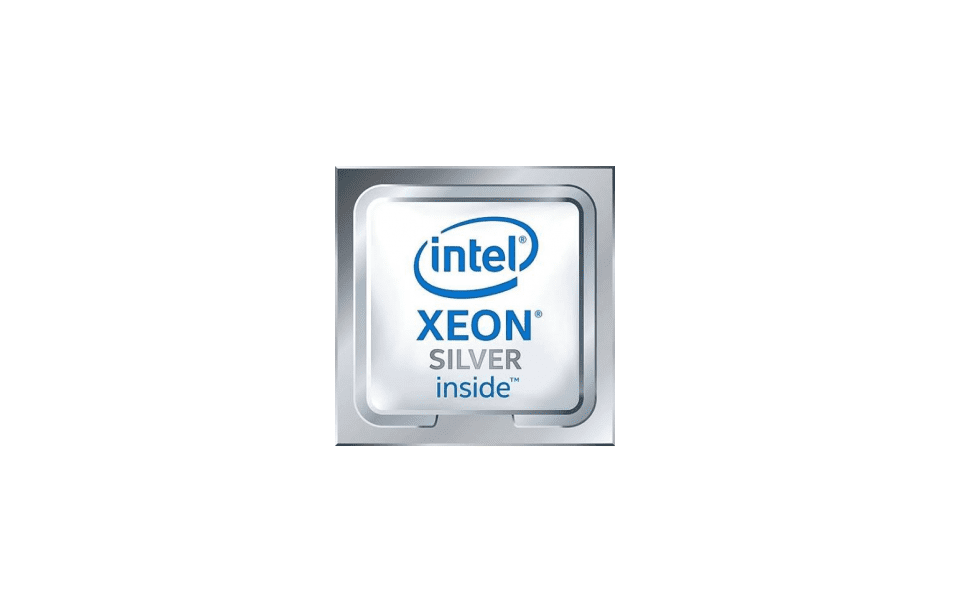

HPE 2.10GHz 11MB Cache Socket 3647 Intel Xeon Silver 4208 8-Core Processor Upgrade
Brand Intel
Part No. P11605-001
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Silver Processor
Core Model Type/ProcNo. 4208
Processor Code Name Cascade Lake
Core Stepping R1
Manufacturing Technology 14 nm
# of Cores 8
# of Threads 16
Clock Speed 2.10 GHz
Max Turbo Frequency 3.20 GHz
L3 Cache Size 11 MB
# of UPI Links 2
Thermal Power 85 Watts
Max Memory Size 1 TB
Memory Types DDR4-2400
Maximum Memory Speed 2400 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported No
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 78 °C
Embedded Options Available No
Scalability 2S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
# of AVX-512 FMA Units 1
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
Product Condition OEM
