P20086-H21 Technical Specifications

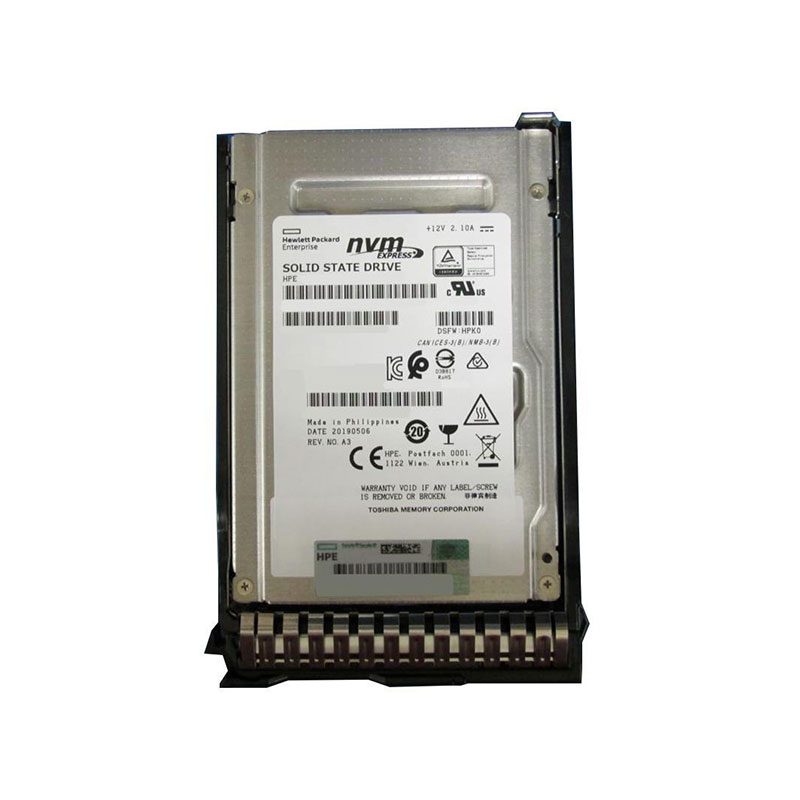

HPE 1.6TB PCI-Express NVMe Gen4 Mixed Use High Performance Digitally Signed CM6 SFF SC U.3 Solid State Drive (SSD)
Part Number: P20086-H21
Brand: HPE
Capacity: 1.6TB
Interface: PCI Express 4.0 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: High Performance Digitally Signed CM6
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 3,800 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 250,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~10W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
