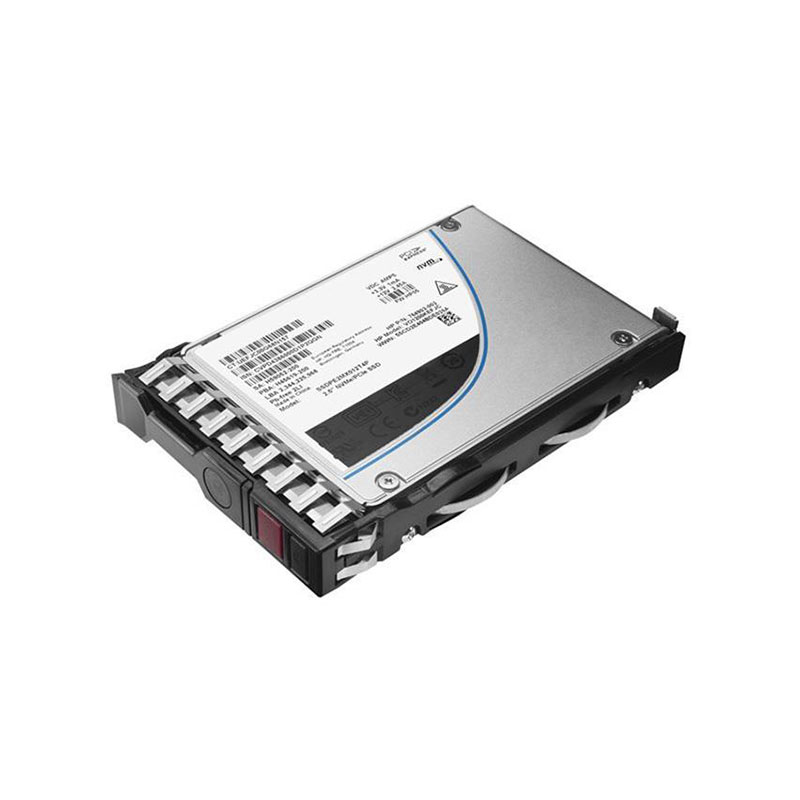

P20088-B21 HPE 3.2TB PCI Express NVMe Gen4 Mixed Use (SSD)
P20088-B21 Overview
The HPE P20088-B21 3.2TB PCIe Gen4 NVMe Mixed Use Solid State Drive (SSD) is a high-performance enterprise storage solution engineered to deliver exceptional speed, endurance, and reliability for HPE ProLiant Gen10 Plus and Gen11 servers. Featuring the PCIe Gen4 x4 NVMe interface and U.3 2.5-inch Small Form Factor (SFF) design, it provides ultra-fast data transfer rates, low latency, and superior I/O performance for demanding workloads.
Optimized for Mixed Use (MU) environments, this SSD is ideal for applications requiring a balanced mix of read and write operations, including virtualization, databases, online transaction processing (OLTP), and analytics.
P20088-B21 Technical Specifications
HPE 3.2TB PCI Express NVMe Gen4 Mixed Use U.3 2.5-inch Internal Solid State Drive (SSD)
Part Number: P20088-B21
Brand: HPE
Capacity: 3.2TB
Interface: PCI Express 4.0 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: Enterprise High Performance
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 4,000 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 300,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~11W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
