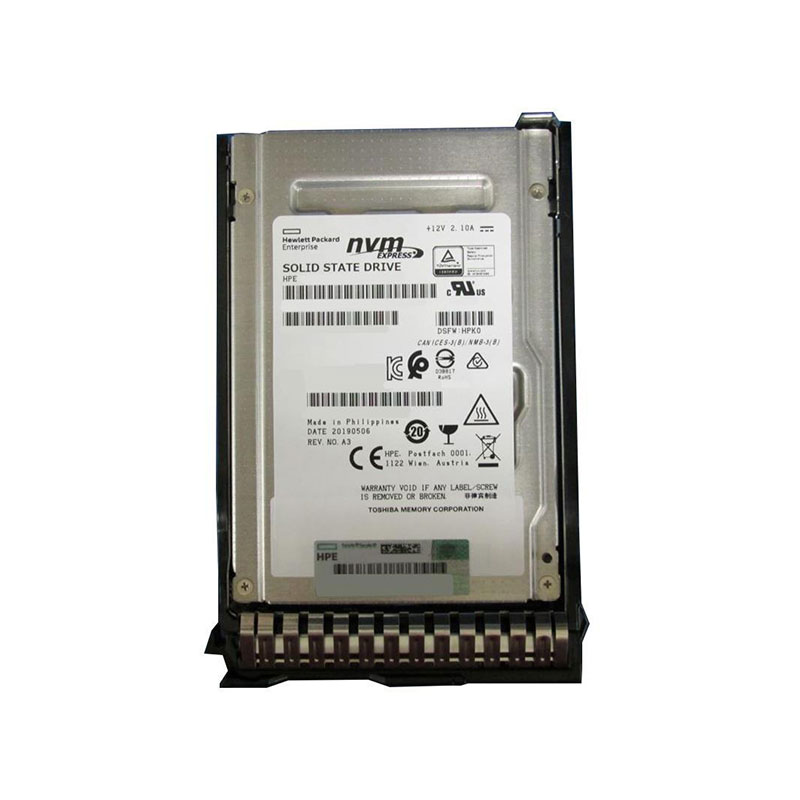

P20088-S21 HPE 3.2TB PCI Express 4.0 x4 NVMe Mixed Use SSD
P20088-S21 Overview
The HPE P20088-S21 3.2TB PCIe Gen4 NVMe Mixed Use Solid State Drive (SSD) is a high-performance enterprise-class storage device designed for HPE ProLiant Gen10 Plus and Gen11 servers. Leveraging the PCI Express 4.0 x4 NVMe interface and a U.3 2.5-inch Small Form Factor (SFF) design, this SSD delivers outstanding read/write speeds, ultra-low latency, and maximum bandwidth, ensuring smooth data access and processing for critical workloads.
Engineered for Mixed Use (MU) applications, it offers an ideal balance between read-intensive and write-intensive operations, making it perfect for virtualization, high-performance computing (HPC), databases, analytics, and enterprise cloud environments.
P20088-S21 Technical Specifications
HPE 3.2TB PCI Express 4.0 x4 NVMe Mixed Use U.3 2.5-inch Internal Solid State Drive (SSD) with Smart Carrier
Part Number: P20088-S21
Brand: HPE
Capacity: 3.2TB
Interface: PCI Express 4.0 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: Enterprise High Performance
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 4,000 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 300,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~11W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
