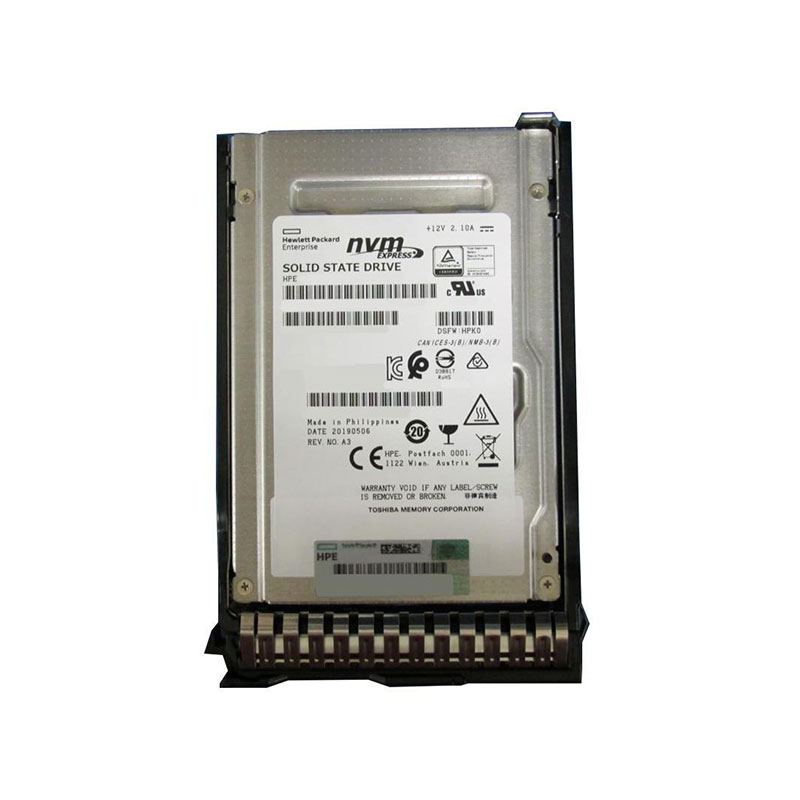

P20197-S21 HPE 3.2TB PCI-Express NVME Gen4 Mixed Use SSD
P20197-S21 Overview
The HPE P20197-S21 is a 3.2TB PCIe Gen4 NVMe Solid State Drive engineered to deliver enterprise-grade performance, endurance, and reliability. Designed around the CD6 Mixed-Use platform, this SSD provides an optimal balance between high-speed read and sustained write operations, making it perfect for data-intensive workloads such as virtualization, transactional databases, analytics, and mixed enterprise applications. Featuring the PCIe Gen4 x4 interface and U.3 Small Form Factor (SFF) design, it ensures ultra-fast data transfer speeds, reduced latency, and seamless integration with next-generation HPE ProLiant and Apollo servers. The drive supports Smart Carrier (SC) technology with built-in LED indicators for hot-swap capability, drive health monitoring
P20197-S21 Technical Specifications
HPE 3.2TB PCI-Express NVME Gen4 Mixed Use CD6 SFF SC U.3 Solid State Drive (SSD)
Part Number: P20197-S21
Brand: HPE
Capacity: 3.2TB
Interface: PCI Express 4.0 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: High Performance CD6 Series
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 6,900 MB/s
Sequential Write Speed: Up to 4,200 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 280,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~11W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
