P22276-H21 Technical Specifications

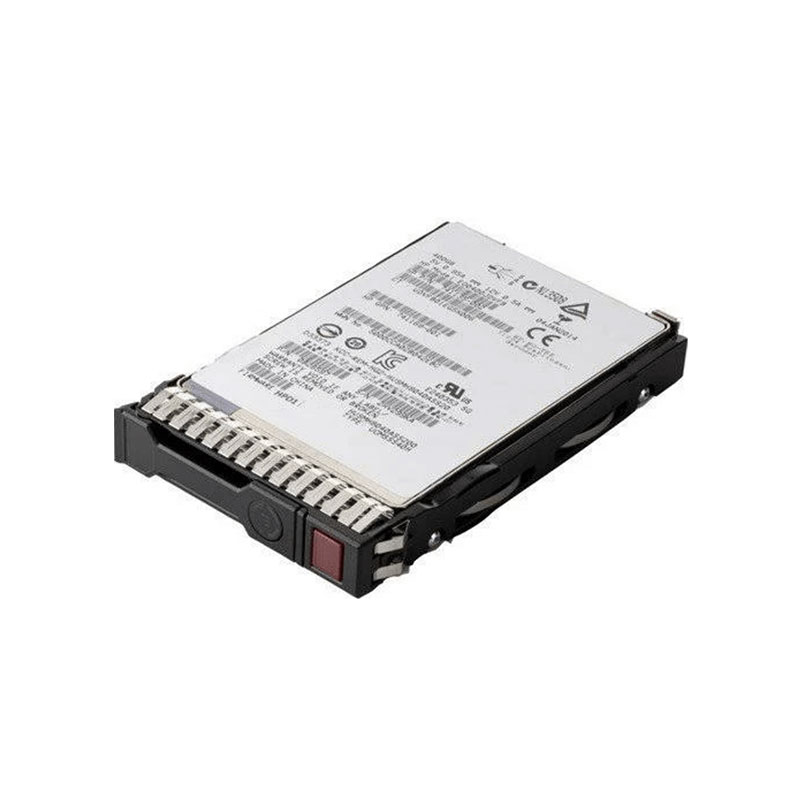

HPE 1.92 Terabytes (TB) 2.5-inch SFF Triple-Level Cell (TLC) Digitally Signed Firmware NVMe U.3 Peripheral Component Interconnect Express (PCI-E) x4 High-Performance Hot Pluggable Solid State Drive for Server
Brand: HPE
MPN: P22276-H21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 1.92TB
Form Factor: 2.5 inch SFF
Interface: NVMe U.3 PCIe
NAND Flash Memory Type: Triple-Level Cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5 inch SFF
Power Consumption
Idle Time: 5.00 Watt
Random Read: 12.90 Watt
Random Write: 12.90 Watt
Sequential Read: 13.60 Watt
Sequential Write: 13.70 Watt
Random Read/Write: 12.90 Watt
Maximum: 13.70 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
