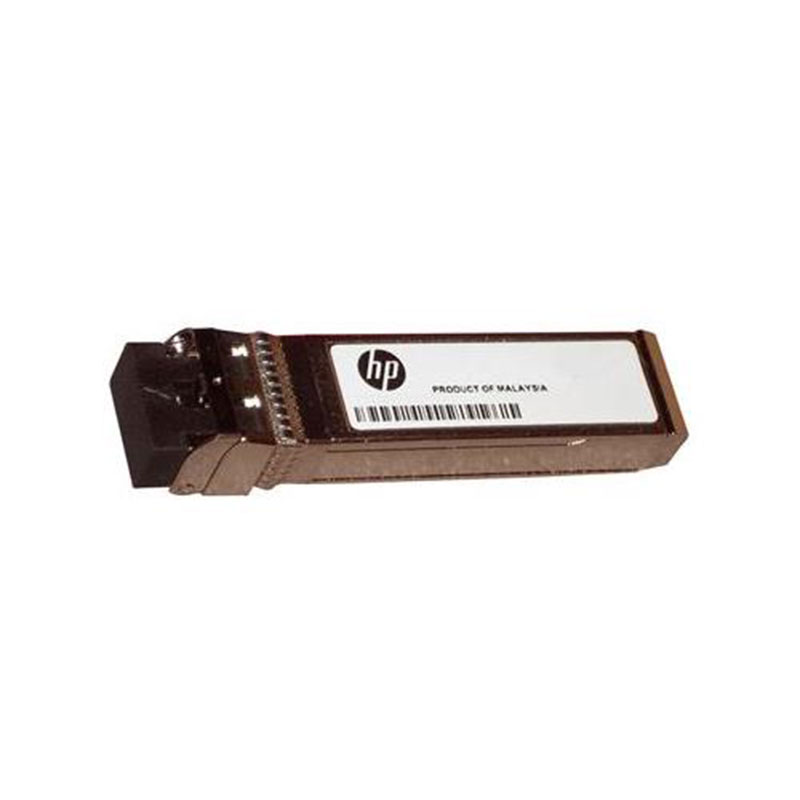

P29141-001 HP 32GB/s 32Gbase-SW MMF Channel LC SFP28 Transceiver
P29141-001 Overview
The HP P29141-001 is a high-speed 32Gb/s Fibre Channel SFP28 shortwave optical transceiver, designed for next-generation storage area networks (SANs) and high-performance data center environments. Supporting the 32GBase-SW standard, this module operates over multi-mode fiber (MMF), providing link distances up to 100 meters on OM4 and 70 meters on OM3 fiber.Equipped with a duplex LC connector and an 850nm VCSEL laser, it ensures efficient, low-latency, and reliable transmission for bandwidth-intensive applications such as enterprise storage, cloud computing, virtualization, and high-speed backup/restore operations.The module is hot-swappable, enabling seamless upgrades or replacements without service interruption.
P29141-001 Technical Specifications
HP 32GB/s 32Gbase-SW MMF Channel LC SFP28 Transceiver
Manufacturer Part Number: P29141-001
Brand Name: HP
Product Type: SFP28 Transceiver Module
Data Rate: 32Gbps
Transceiver Type: 32GBase-SW (Short Wavelength)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: LC Duplex
Maximum Reach: Up to 100m (OM3) / 125m (OM4)
Form Factor: SFP28
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP Fibre Channel switches, storage arrays, and SAN environments
Application: High-speed Fibre Channel storage networking (SAN)
Standards Compliance: FC-PI-6, SFP28 MSA
Backward Compatibility: Supports 16Gbps and 8Gbps Fibre Channel operation
Operating Temperature: 0°C to 70°C
