P40485-B21 Technical Specifications

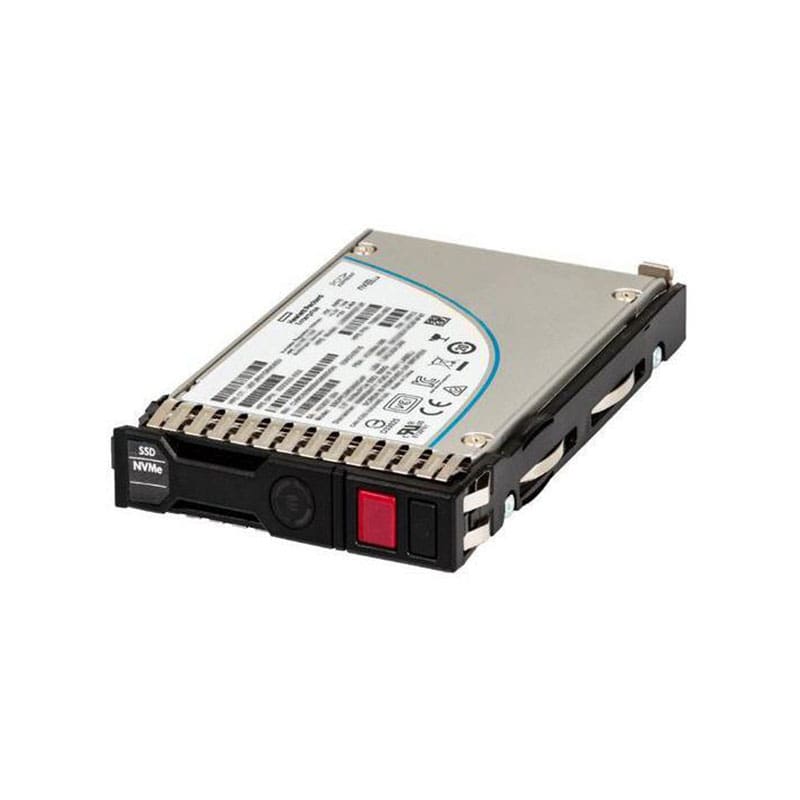

HPE 7.68TB PCI Express 4.0 x4 NVMe Read Intensive U.3 2.5-inch
Brand HPE
Product Line HPE
Manufacturer HP CTO Server Avnet
Storage
Endurance (DWPD) 1
Endurance Type 13697 TB
Form Factor (Short) 2.5″
Form Factor (Short) (metric) 6.4 cm
Hard Drive Capacity 7.68 TB
Hard Drive Features
Digitally Signed Firmware
Hard Drive Type Hot-swap hard drive
HD Interface U.3 PCIe 4.0 x4 (NVMe)
Max 4KB Random Read 880000 IOPS
Maximum 4KB Random Write 85000 IOPS
NAND Flash Memory Type
Triple-level cell (TLC)
Storage Interface
U.3 PCIe 4.0 x4 (NVMe)
4KB Random Read 155000 IOPS
4KB Random Write 85000 IOPS
Power
Power Consumption
15.3 Watt (sequential read), 16 Watt (random read/write), 17.1 Watt (random write), 17.4 Watt (random read), 18.6 Watt (maximum), 18.6 Watt (sequential write), 6.3 Watt (idle power)
Technical Information
Compatible Bay 2.5″ SFF
Hard Drive Form Factor 2.5″ SFF
Hard Drive Form Factor (metric) 6.4 cm SFF
Product Information
Bundled With
HPE Basic Carrier
Packaged Quantity 1
Product Type Solid state drive
Dimensions & Weight
Height 0.6 inch
Weight 17.64 ounce
