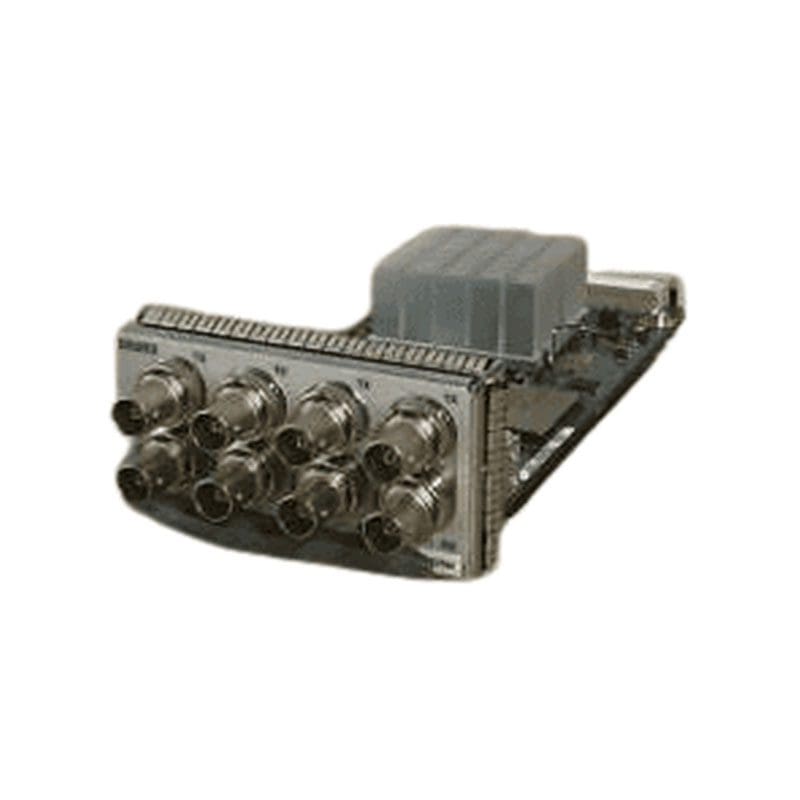

PB-4DS3-E3-IQE-BNC Juniper DS3 IQ-E Physical Interface Card
PB-4DS3-E3-IQE-BNC Overview
The Juniper Networks Enhanced IQ PIC Module is highly sophisticated hardware and software module that implement the next generation of class of service, class-based traffic management and high-level channelization capabilities.
$25,499
PB-4DS3-E3-IQE-BNC Technical Specifications
Juniper Networks Non-Channelized DS3 IQ-E Physical Interface Card
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Non-Channelized
Model :DS3 IQ-E Physical Interface Card
Packaged Quantity :1
Line Properties
Line Rate :T-3/E-3
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :FRF.16, FRF.15, HDLC, Frame Relay, PPP, MLPPP
Remote Management Protocol :SNMP
Features :Quality of Service (QoS), MPLS support
Interface Provided
Interfaces :4 x DS3 – BNC
Slot Required
Compatible Slots :1 x expansion slot
System Requirements
OS Required :JUNOS
Miscellaneous
Compliant Standards :EN 61000-4-6, BSMI, EN 61000-4-3, FCC Class A certified, AS/NZS 3548, EN 60950, EN 61000-4-4, ETSI, EN 61000-3-2, FCC Part 15, UL 60950 Third Edition, NEBS level 3, EN 61000-4-5, EN 61000-4-2, EN 61000-4-11, CSA 22.2 No. 60950
