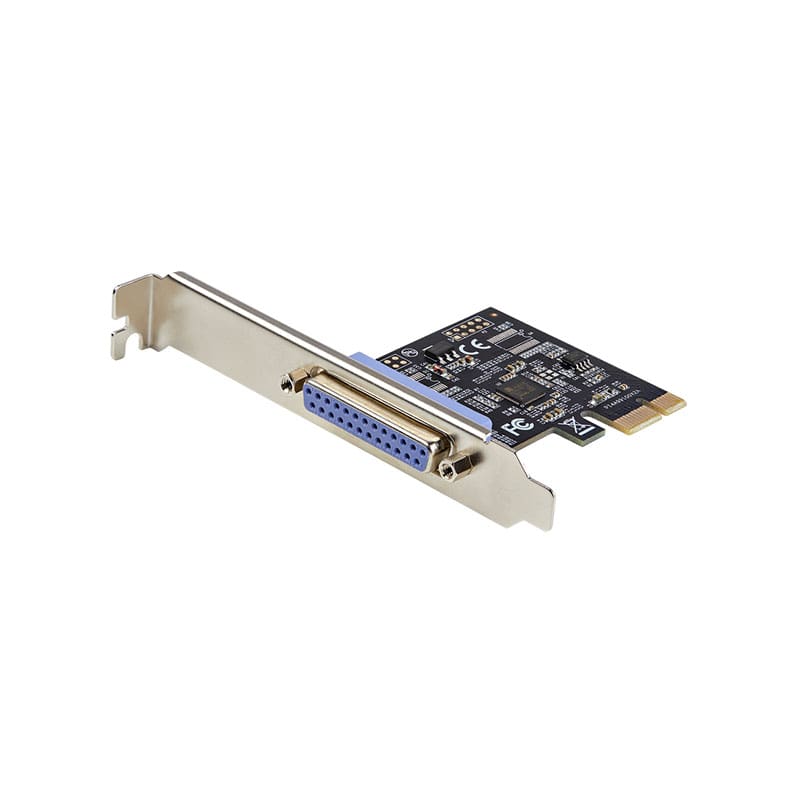

PEX1P2 StarTech.com 1-Port Parallel PCIe Controller Card
PEX1P2 Overview
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
$34
PEX1P2 Technical Specifications
StarTech.com 1-Port Parallel PCIe Card – PCI Express to Parallel LPT DB25 Controller Card – SPP/ECP
Brand: StarTech.com
Manufacturer: StarTech.com
Network & Communication
Form Factor: Plug-in Card
Host Interface: PCI Express 2.0 x1
Connectivity
Parallel Ports (External): 1
Product Information
Country of Origin: China
Platform Supported: Linux, PC
Product Type: Parallel Adapter
Dimensions & Weight
Card Height: Half-height/Low-profile
Height: 0.7 inch
Weight: 1.59 ounce
Width: 2.9 inch
Certifications & Listings
Environmentally Friendly: Yes
