PEX4S553 StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550

PEX4S553 Overview

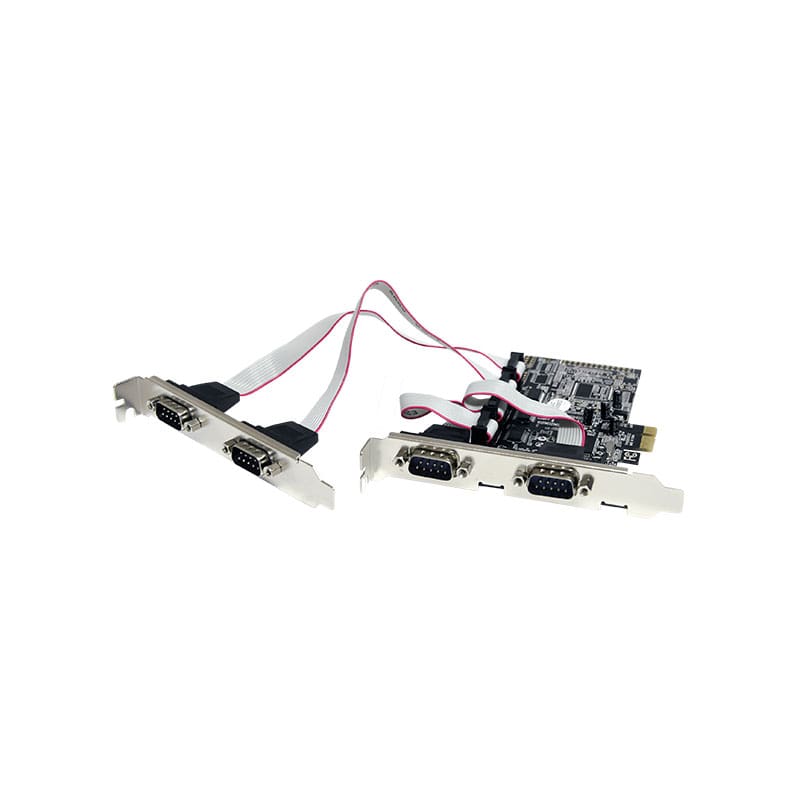

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.

$88

Buy Now
Availability: In Stock
SKU:PEX4S553
Brand:

PEX4S553 Technical Specifications

StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550

Brand: StarTech.com
Manufacturer: StarTech.com
Network & Communication
Data Transfer Rate: 128kB/s Kbps
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Connectivity
Serial Ports (External): 4
Technical Information
UART Type: 16550, 16C450
Product Information
Country of Origin: China
Included Quantity: 1
Platform Supported: PC
Product Type: Serial Adapter
Dimensions & Weight
Card Height: Dual-profile
Height: 0.7 inch
Length: 4.7 inch
Weight: 2.60 ounce
Width: 5.1 inch
Certifications & Listings
Environmentally Friendly: Yes
