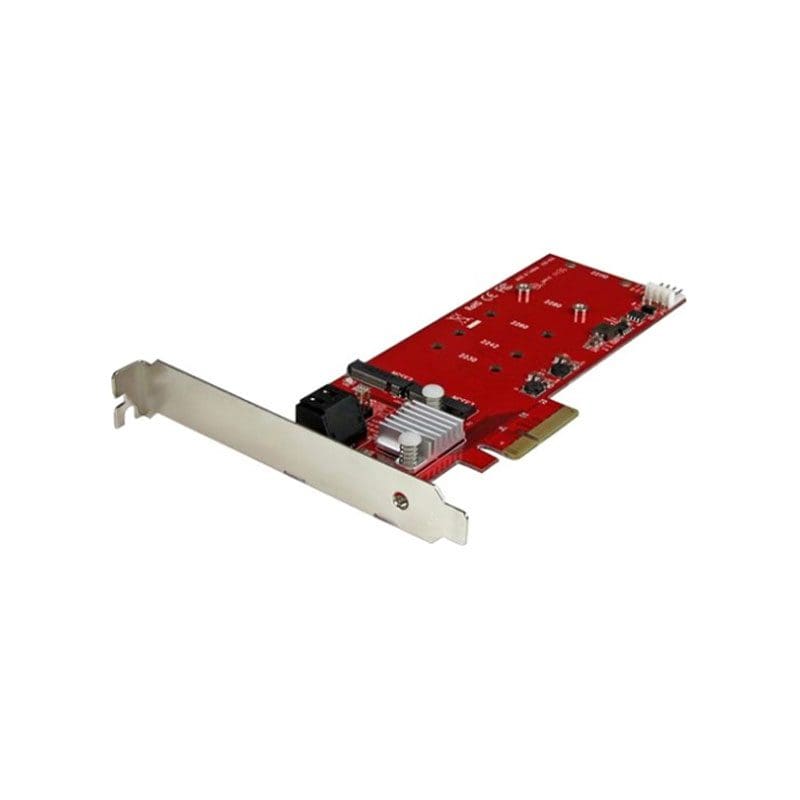

PEXM2SAT3422 StarTech 2x M.2 NGFF SSD RAID Controller Card

PEXM2SAT3422 Technical Specifications

StarTech 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports PCIe Two Slot PCI Express M.2 RAID Card plus Two SATA Ports

Manufacturer Part Number PEXM2SAT3422
Brand Name StarTech.com
Product Type SATA Controller
Technical Information
Host Interface PCI Express 2.0 x4
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
10
1+0
JBOD
Interfaces/Ports
Total Number of SATA Ports 2
Number of SATA Ports (Internal) 2
Physical Characteristics
Height 4.7″
Width 0.8″
Depth 7.1″
Form Factor Plug-in Card
Weight (Approximate) 3.50 oz
Miscellaneous
Platform Supported Mac
Linux
PC
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
