PEXMSATA343 Technical Specifications

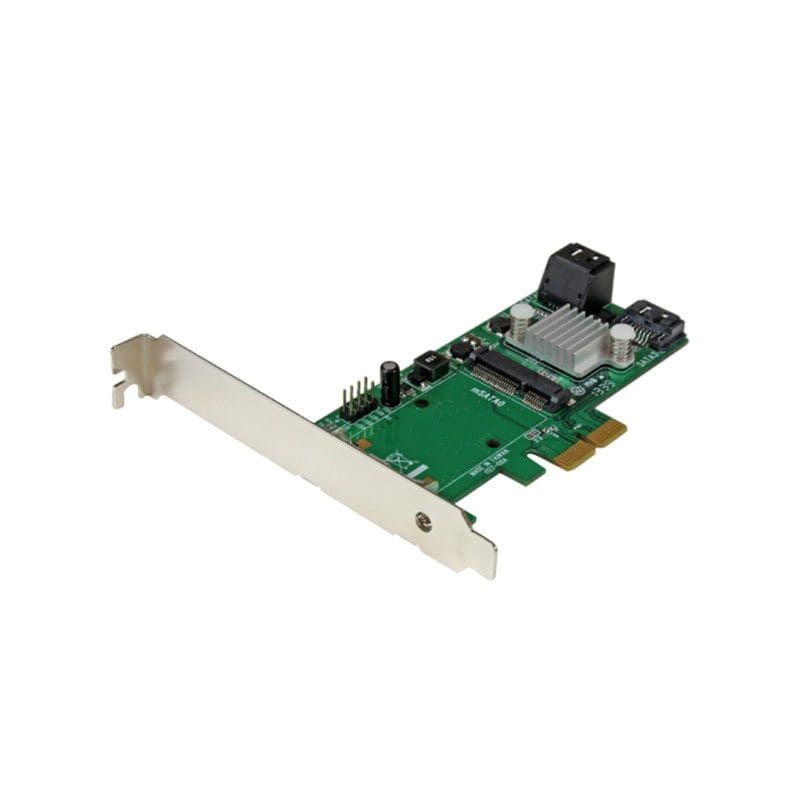

StarTech 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering
Manufacturer Part Number PEXMSATA343
Brand Name StarTech.com
Product Type SATA Controller
Technical Information
Host Interface PCI Express 2.0 x2
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels JBOD
0
1
10
1+0
Interfaces/Ports
Total Number of SATA Ports 3
Number of SATA Ports (Internal) 3
Number of mSATA Interfaces 1
Physical Characteristics
Height 4.7″
Width 4.5″
Thickness 0.8″
Form Factor Plug-in Card
Weight (Approximate) 1.90 oz
Miscellaneous
Platform Supported Mac
PC
Environmentally Friendly Yes
Environmental Certification RoHS
