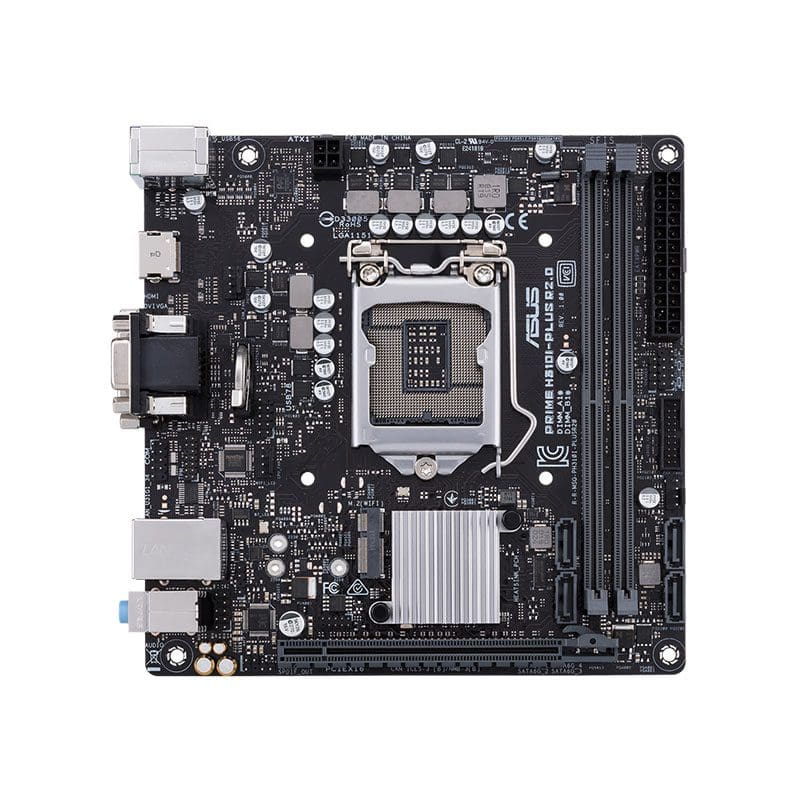

PRIME H310I-PLUS R2.0/CSM ASUS LGA 1151 (300 Series) Motherboard

PRIME H310I-PLUS Technical Specifications

R2.0/CSM ASUS LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

Model
Brand
ASUS
Series
Prime
Model
H310I-PLUS R2.0/CSM
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
LGA1151 socket for 8th Generation Intel Core i7/i5/i3/ Pentium / Celeron Processors
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0*
Chipsets
Chipset
Intel H310
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor – Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/D-Sub ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Memory
Number of Memory Slots
2×288pin
Memory Standard
DDR4 2666/ 2400/ 2133 MHz, non-ECC, un-buffered memory
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 mode)
Other Slots
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s port(s), gray
M.2
1 x M.2 socket 3 with M key, type 2260/2280 storage devices support (both SATA* & PCIe mode)
* When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
* Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set to PCIe 2.0.
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps
