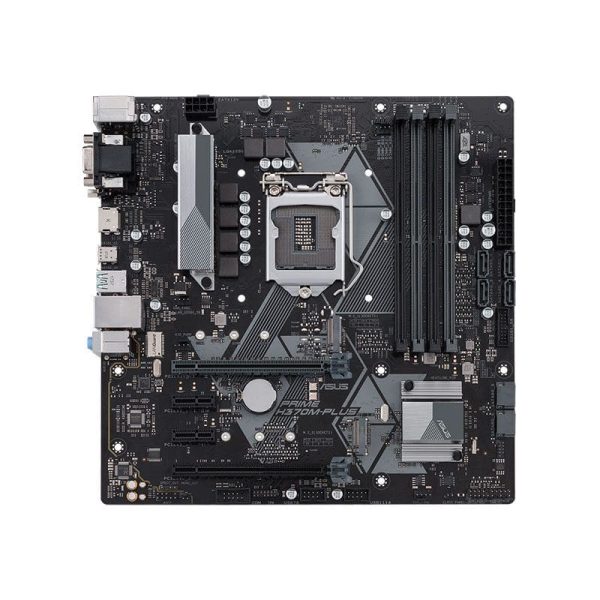

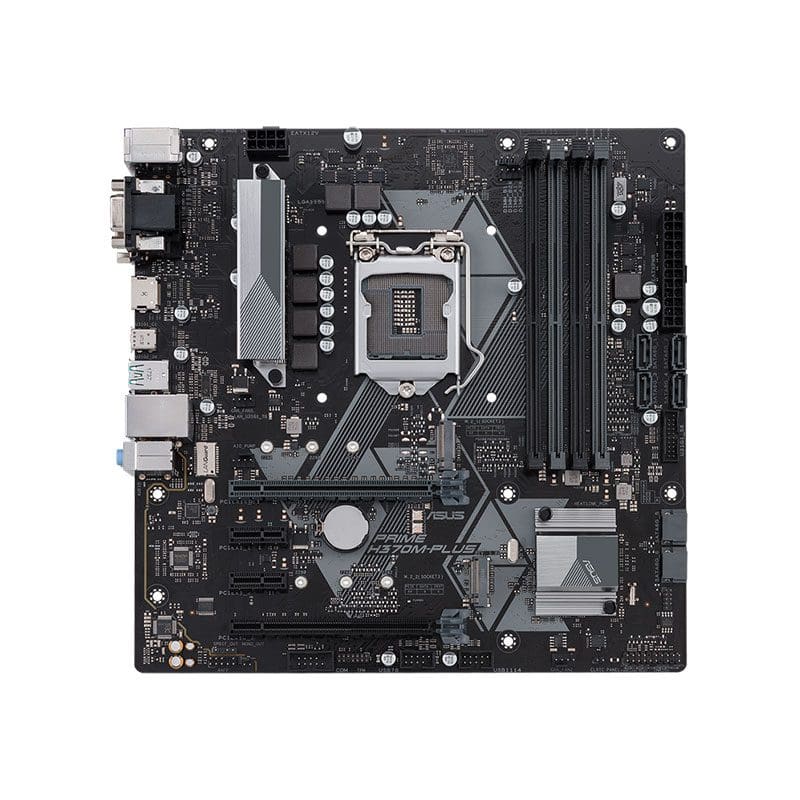

PRIME H370M-PLUS/CSM ASUS LGA1151 (300 Series) DDR4

PRIME H370M-PLUS/CSM Technical Specifications

ASUS LGA1151 (300 Series) DDR4 HDMI DVI VGA M.2 mATX Motherboard

Model
Brand
ASUS
Model
Prime H370M-Plus/CSM
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Intel Socket 1151 for 8th Generation Core i7/i5/i3/ Pentium / Celeron Processors
Chipsets
Chipset
Intel H370
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor – Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/D-Sub ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 2666/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x1
2 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s port(s), gray
M.2
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
* The M.2_1 socket shares SATA_1/2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue) up to 10Gbps
3 x USB 3.1 Gen 1 (blue) (Type-A + Type-C)
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x TPM header
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Mono Out header
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6″ x 9.6″
Power Pin
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
