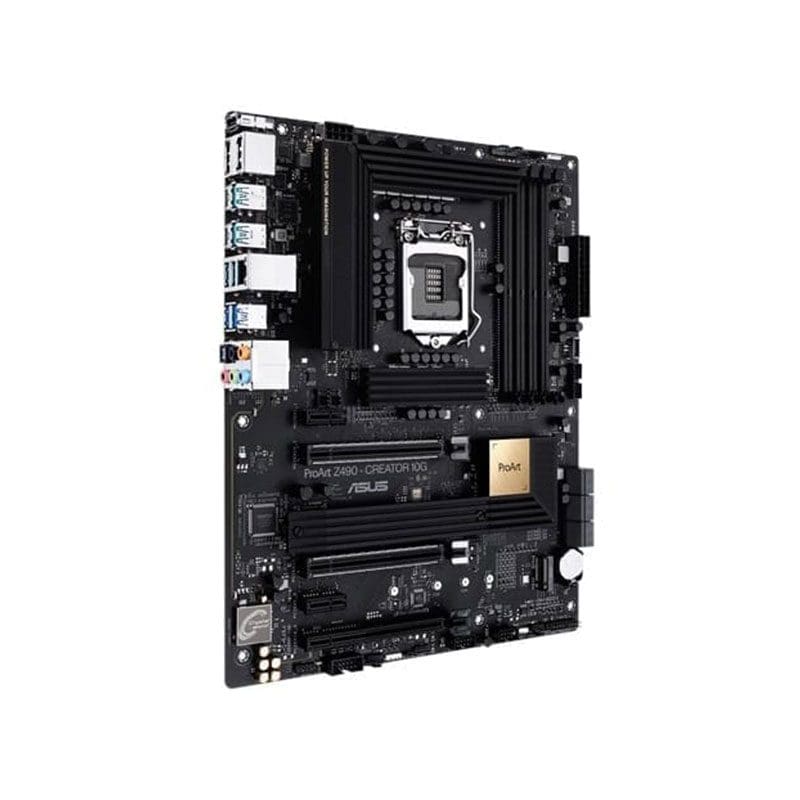

PROART Z490-CREATOR 10G ASUS 10G LGA 1200 Intel Z490

PROART Z490-CREATOR Technical Specifications

10G ASUS 10G LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, 10G LAN Card, 2.5G Intel LAN, Thunderbolt 3 Type-C

Model
Brand
ASUS
Model
ProART Z490-CREATOR 10G
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel Z490
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic:
1 x DisplayPort 1.4 from CPU*
1 x HDMITM 1.4b
2 x Thunderbolt 3 ports(Type-C) that support DisplayPort 1.4 and Thunderbolt video outputs from an add-on graphics card***
* Output at TBT(U32G2)_EC1, the USB Type-C port near HDMI, requires a USB-C to DisplayPort adapter cable.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*** Resolution depends on graphics cards’ resolution.
**** Graphics specfications may vary between CPU types.
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
Intel 10th Gen processors
2 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x4+x4, x8+x4+x4/x0 modes)*
Intel Z490 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
* Support PCIe bifurcation for RAID on CPU function.
** PCIe 3.0 x4 will be switched from Thunderbolt 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt 3 will have no output.
PCI Express x1
2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
Intel Socket LGA1200
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
Intel Z490 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
* When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
** M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled.
