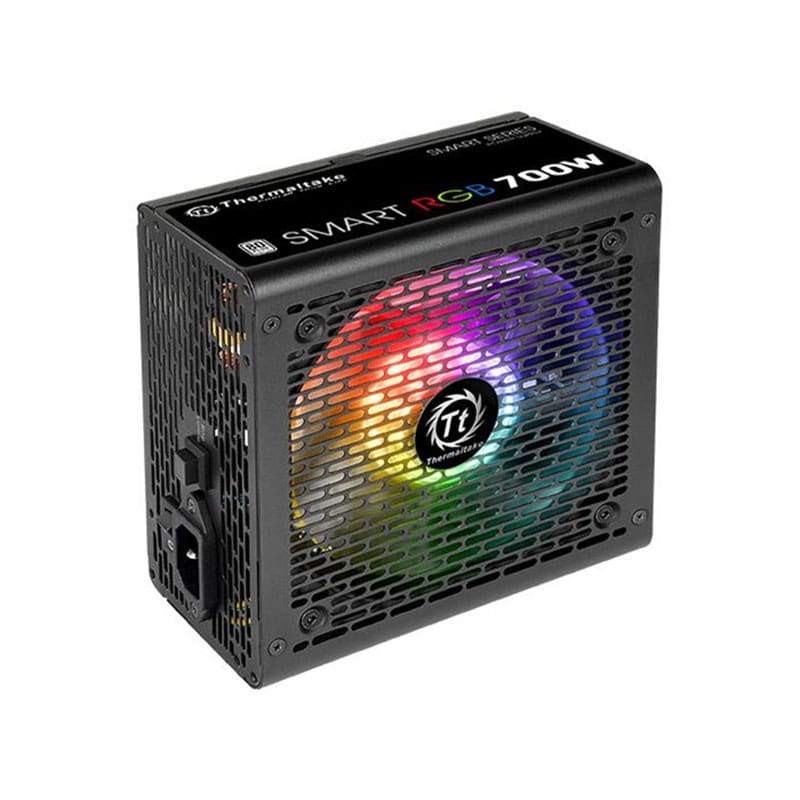

PSSPR0700NHFAWU1 Thermaltake Smart RGB 700W 80+ Power Supply

PSSPR0700NHFAWU1 Technical Specifications

Thermaltake Smart RGB 700W 80+ 256 Color RGB Fan ATX 12V 2.3 Kaby Lake Ready Power Supply

Short P/N: SPR-0700NHFAW
Model: SPR-700AH2NK-1
Type: Intel ATX 12V 2.3
Max. Output Capacity: 700W
Color: Black
Dimension (H x W x D): 86mm x 150mm x 140mm
PFC （Power Factor Correction:  Active PFC
Power Good Signal: 100-500 msec
Hold Up Time: 16msec (minimum) within 60% load
Input current: 12A max

Input Frequency Range: 50 Hz – 60 Hz
Input Voltage: 100Vac – 240Vac
Operating Temperature: 5℃ to +40℃
Operating Humidity: 20% to 85%,non-condensing
Storage Temperature: -40 ℃ to +55 ℃
Storage Humidity: 10% to 95%, non-condensing
Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
Efficiency: 80-87% efficiency @ 20-100% load
MTBF: 100,000 hrs minimum
Safety Approval: CE/CB/TUV/ UL/ FCC/ EAC
P/N: PS-SPR-0700NHFAWx-1
Protection: OVP, OPP, SCP
