PWR-C1-715WAC-UP Technical Specifications

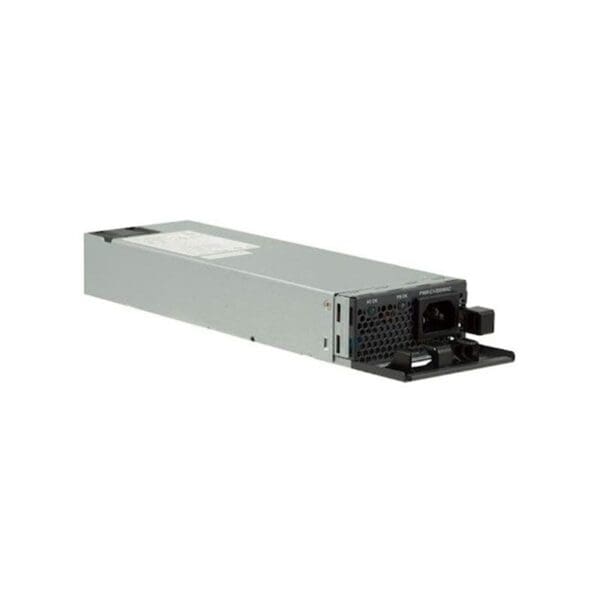

Cisco 715W AC 80+ Power Supply
Product Description: Cisco Config 1 (Upgrade) – power supply – hot-plug / redundant – 715 Watt
Device Type: Power supply – hot plug / Redundant Power Supply
80 PLUS Certification 80 PLUS Platinum
AC Power Supply
Weight: 2.87 lbs
Input Voltage: AC 100-240 V
Output Voltage: -56 V
Power Capacity: 715 Watt
Input Connectors Power: IEC 60320 C16
Dimensions (WxDxH): 3.3 in x 12.2 in x 1.6 in
Designed For: Catalyst 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-48P-E, 3850-48P-L, 3850-48P-S, 3850-48PW-S
