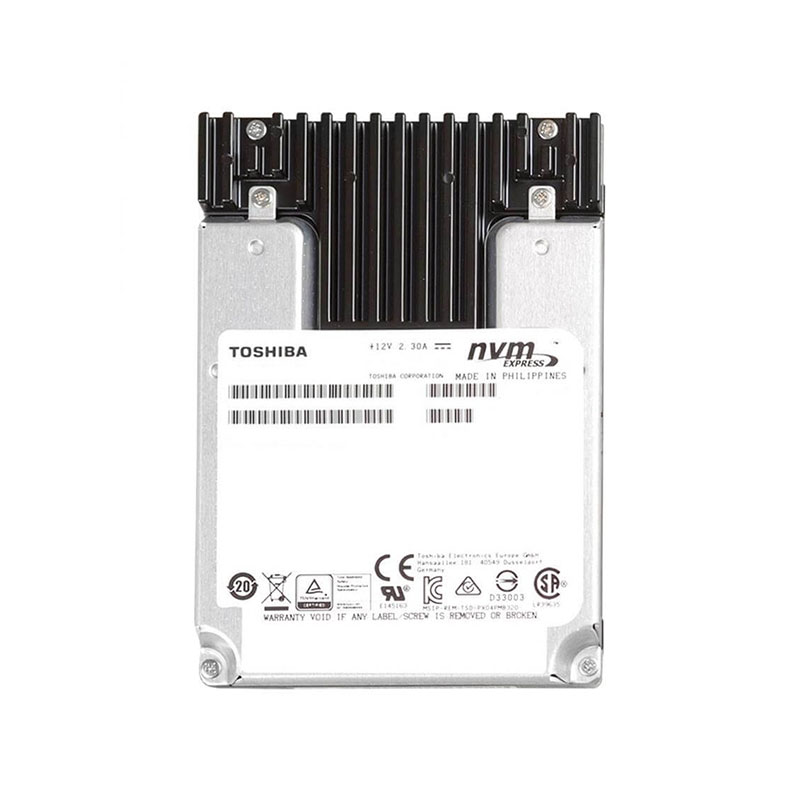

PX04PMB160 Technical Specifications
Toshiba 1.6 TB PCI Express 3.0 x4 NVMe 2.5 inch 18.5W Active Power Consumption Solid State Drive with Power Fail Protection & Recovery
Manufacture: Toshiba
MPN: PX04PMB160
Type: Internal Solid State Drive
SSD Type: PCI Express
Technical Information
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: PCI-E
Form Factor: 2.5inx15mm SFF Server Drive
Electrical Interface: PCIe – v3.0 – 32GBps
Wattage/VA: 6W
Voltage: 12V
Dimensions & Weight
Height: 0.63 Inch
Width: 3.10 Inch
Depth: 5.45 Inch
Weight: 1.50 Lbs
Key Features
Up to 3.2TB Storage Capacity
2.5-type form factor, 15 mm Z-height
10 DWPD with 100% Random Workload
Up to 660k IOPs random read
Power Loss Protection
18.5W Active Power Consumption
Key Applications
JBOF (Just a bunch of flash)
Web server
HPC
OLTPD
Media Streaming
