Q0U61B Technical specifications

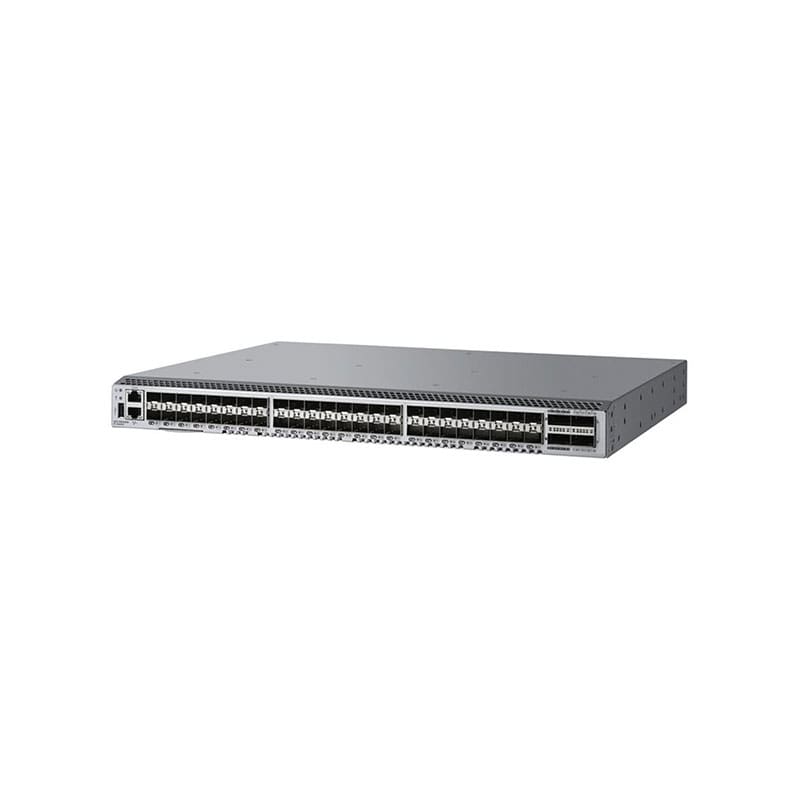

HPE sn6600b 32g 48/48 power pack+ 48p 32gb sw sfp+ fc switch
Device Type : Switch – 48 Ports – Managed – With 48x 32 Gbps Swl Sfp+ Transceiver
Enclosure Type : Rack-mountable 1u
Subtype : Fibre Channel
Ports : 48 X Sfp+ + 4 X Qsfp+
Performance : Aggregate Bandwidth: 2 Tbps ¦ Port-to-port Latency: 700 Ns
Capacity : Maximum Frame Size: 2112
Encryption Algorithm : Ssl
Expansion / Connectivity :
Interfaces
48 X 32gb Fibre Channel Sfp+
4 X 32gb Fibre Channel Qsfp+
1 X 100base-tx Rj-45 Management
1 X Console Rj-45 Management
1 X Usb Type A
Power :
Power Device : Internal Power Supply – Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Voltage Required : Ac 120/230 V (50/60 Hz)
Miscellaneous :
Cables Included : 1 X Serial Cable
Rack Mounting Kit : Included
Localization : English / United States
