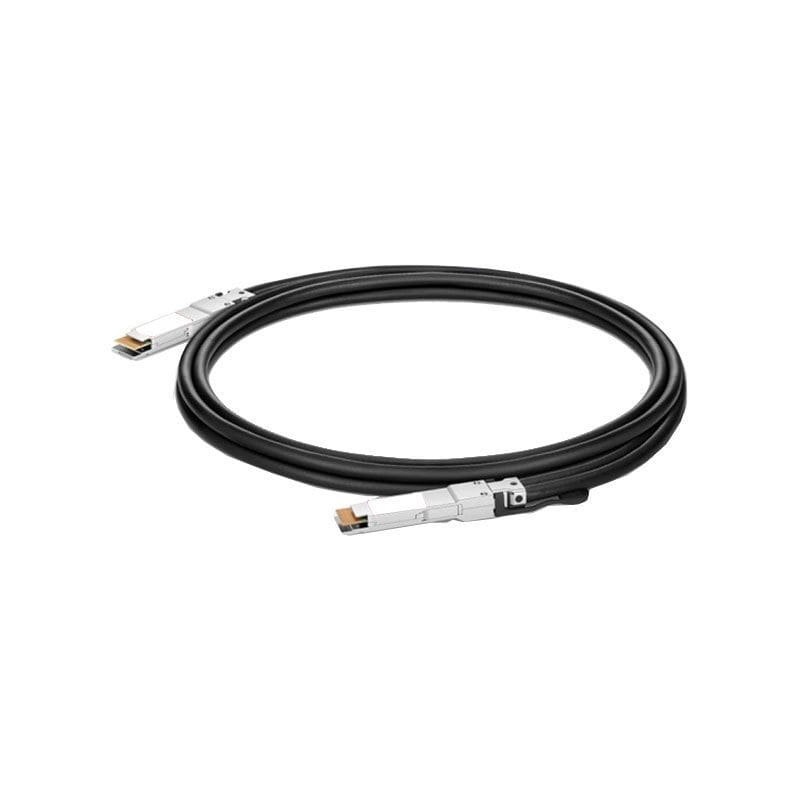

QDD-400-CU3M Cisco 400G QSFP-DD Copper Twinax Cable

QDD-400-CU3M Overview

Cisco 400G QSFP-DD DAC Twinax Cable (3-meter, Passive, QSFP-DD to QSFP-DD, 28AWG)

The 400G QSFP-DD DAC provides a QSFP-DD-to-QSFP-DD copper direct-attach solution and it is suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between QSFP-400G ports of switches/routers within racks and across adjacent racks. This DAC is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance. It is tested in actual switching systems to ensure optimal signal integrity and the best end-to-end performance.

$388

Updated Price and Quantity Discount

Request a Quote Click for RFQ

or
Guaranteed safe checkout Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with American Express Pay safely with Maestro
Your Payment is 100% Secure

QDD-400-CU3M Technical Specifications

Cisco 400G QSFP-DD Passive Direct Attach Copper Twinax Cable

Manufacture PArt Number : QDD-400-CU3M
Connector Type : QSFP-DD to QSFP-DD
Minimum Bend Radius : 55mm
Cable Length : 3m (9.84ft)
Cable Type : Passive Twinax
Power Consumption : 1.5W
Temperature : 0 to 70°C (32 to 158°F)
Max Data Rate : 400Gbps
Wire AWG : 28AWG
Power Supply : 3.3V
Protocols : 400G Ethernet
