Refurbished QFX10002-72Q-T Technical Specifications

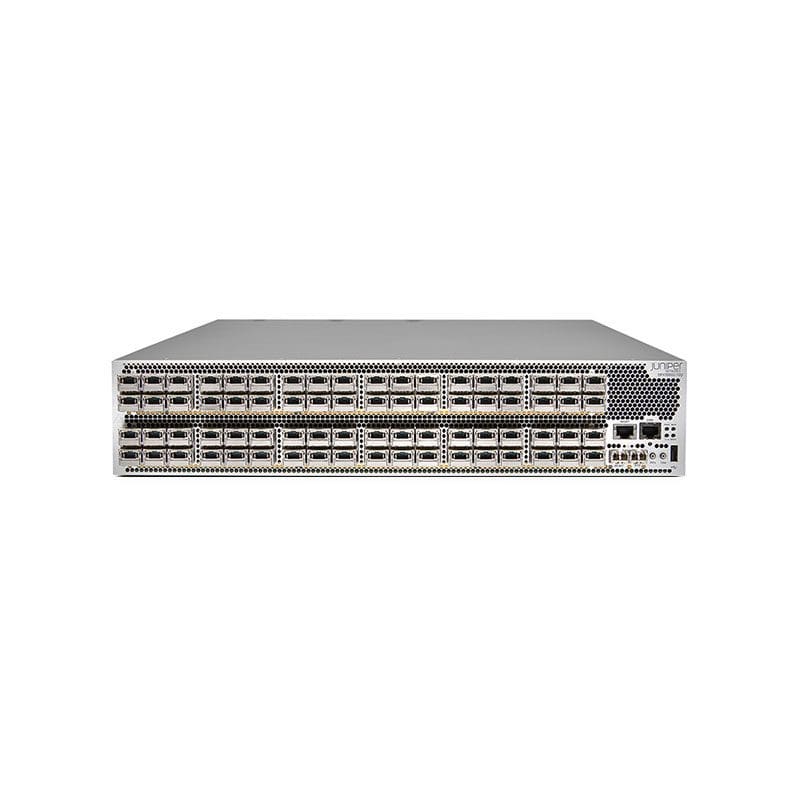

Juniper Networks QFX Series QFX10002-72Q switch 72 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX10002-72Q
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.5 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Forwarding performance: 2 Bpps, Throughput: 5.76 Tbps
Capacity
Capacity :IPv4 routes: 2000000, Virtual interfaces (VLANs): 4000, IPv6 forwarding information base (FIB): 256000, GRE tunnels: 4096, IPv4 forwarding information base (FIB): 256000, IPv6 routes: 2000000, IPv4 routes (Multicast): 128000, IPv6 routes (Multicast): 128000, Virtual output queues: 384000, ARP entries: 256000, Equal-Cost Multipathing (ECMP) ways: 64, Queues per port: 8
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :40 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :72
Advanced Switching :Layer 3
Routing Protocol :OSPFv3, Bidirectional Forwarding Detection (BFD), RIPng, MLD, MLDv2, RIP-2, CIDR, VRRP, OSPFv2, OSPF, IGMPv2, ECMP, GRE, PIM-DM, MSDP, Static IP routing, Bidirectional PIM, BGP-4, PIM-SM, PIM-SSM, RIP-1, IGMPv3, IGMP
MAC Address Table Size :512K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :TFTP, CLI, SNMP 2, RMON 9, RMON 1, RMON 2, SSH, SNMP 1, RMON 3, Telnet, SNMP 3
Features :DoS attack prevention, sFlow v5, Port mirroring, Unicast Reverse Path Forwarding (URPF), NTP time synchronization, Spanning Tree Protocol (STP) support, Internet Control Message Protocol (ICMP), Access Control List (ACL) support, IPv6 support, sFlow, RARP support, Data Center Bridging Exchange (DCBX) support, IGMP snooping, BOOTP support, 24GB packet buffer, EVB Type-Length-Value (TLV), Rapid Spanning Tree Protocol (RSTP) support, VLAN support, ICMP Router Discovery Protocol (IRDP), Explicit Congestion Notification (ECN), SNTP support, IPv4 support, Class of Service (CoS), Precision Time Protocol (PTP), Front to back airflow, Weighted Random Early Detection (WRED), Virtual Output Queuing (VOQ), FCoE support, VLAN Spanning Tree Protocol (VSTP), DiffServ support, DHCP server, Redundant hot swappable fans, Neighbor Discovery Protocol (NDP), Management Information Base (MIB), Weighted Round Robin (WRR) queuing, DHCP relay, System log, Quality of Service (QoS), ARP support, IGMP proxy, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support
Compliant Standards :IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.3, IEEE 802.1w, IEEE 802.1p, IEEE 802.3u, IEEE 802.1s, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.3ba, IEEE 802.1Q, IEEE 802.3ab
Ports
Qty :72
Type :40 Gigabit QSFP+ (breakout compatible)
Interface Provided
Interfaces :1 x SFP management, 1 x 1000Base-T RJ-45 management, 1 x console management, 72 x 40Gbit LAN QSFP+ (breakout compatible), 1 x SFP+ management, 1 x USB 2.0 management
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :4
Max Supported Qty :4
Power Provided :1600 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :1000 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :MD5, AES
Authentication Method :Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards :EN 61000-3-3, CISPR 22 Class A, KN22 Class A, ETSI 300 019, EN 60825-1, EN55024, CAN/CSA C22.2 No. 60950-1, EN 61000-3-2, REACH, BSMI CNS 13438 Class A, UL 60950-1, CISPR 24, EN 300386, EN 55022 Class A, GR-63-CORE, RoHS 6/6, VCCI Class A, FCC CFR47 Part 15 A, ICES-003 Class A, WEEE, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :31 inch
Height :3.5 inch
Weight :68.34 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
