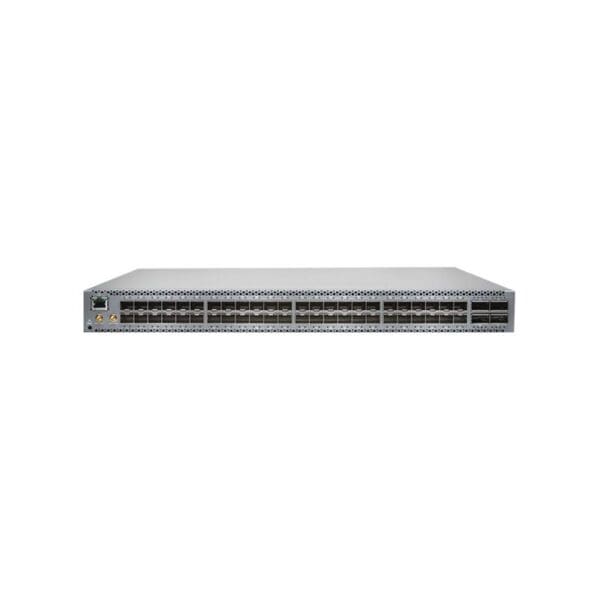

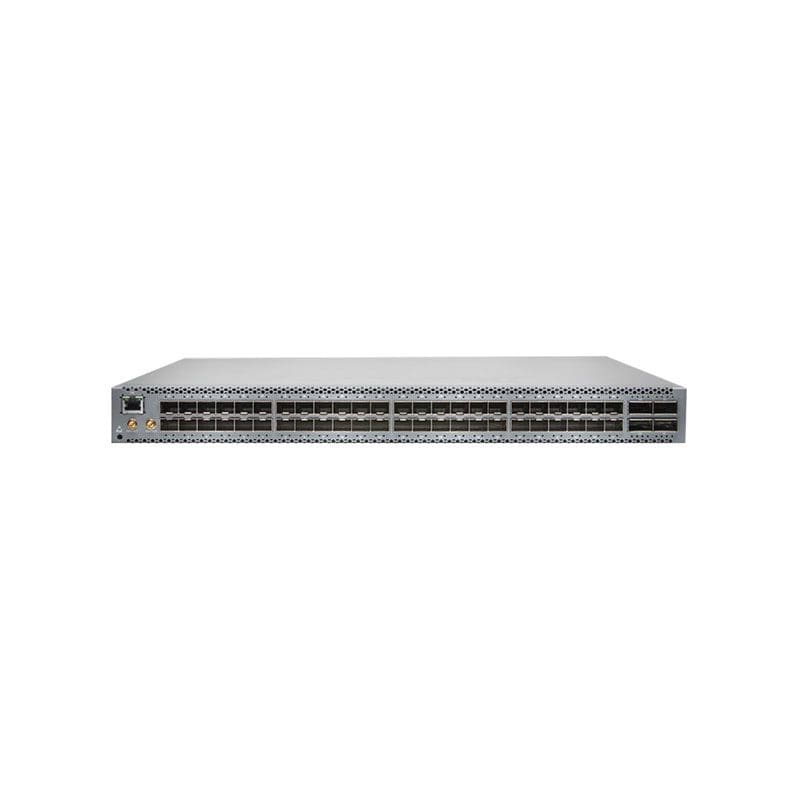

QFX5110-48S-AFI Juniper Networks QFX Series QFX5110-48S switch

QFX5110-48S-AFI Overview

A 10GbE/100GbE data center access switch, the QFX5110-48S offers 48 small form-factor pluggable plus (SFP+) transceiver ports and four QSFP28 ports, that can be configured as 4x40GbE or 4x100GbE ports, with a high aggregate throughput per switch. For added flexibility, each QSFP28 port can also be configured as 4x10GbE ports, using breakout cables, increasing the total number of supported 10GbE ports to 64 per switch.


Buy Now
Availability: In Stock

QFX5110-48S-AFI Technical Specifications

Juniper Networks QFX Series QFX5110-48S switch 48 ports managed rack mountable

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5110-48S
Packaged Quantity :1
Airflow Direction :Back to front airflow
Performance :Switching capacity: 1.76 Tbps, Switching capacity: 1.32 Bpps
Capacity :MAC address entries: 288000, Firewall ingress filters: 6142, QoS hardware queues per port: 12, IPv6 routes (Multicast): 52000, MSTP instances: 64, ARP entries: 48000, LAG groups: 104, IPv4 routes (Unicast): 128000, IPv6 routes (Unicast): 84000, VSTP instances: 253, Jumbo frame size: 9216, Firewall egress filters: 1022, IPv4 routes (Multicast): 104000, Maximum member ports per LAG: 32, VLAN IDs: 4093
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
