Refurbished QFX5110-48S-DC-AFO Technical Specifications

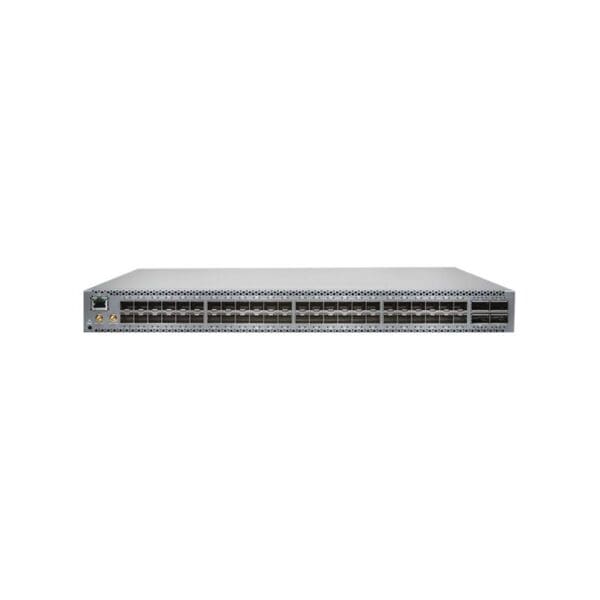

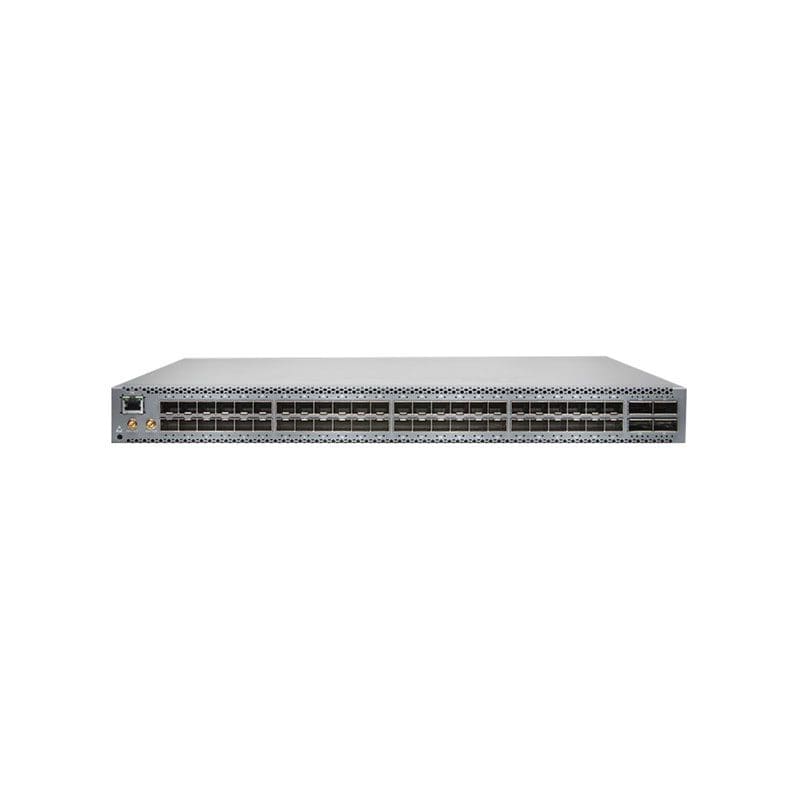

Juniper QFX Series QFX5110-48S switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5110-48S
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :64 GB SSD
Processor
Manufacturer :Intel
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Switching capacity: 1.32 Bpps, Switching capacity: 1.76 Tbps
Capacity
Capacity :Firewall egress filters: 1022, MSTP instances: 64, ARP entries: 48000, VLAN IDs: 4093, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, Jumbo frame size: 9216, IPv6 routes (Unicast): 84000, Firewall ingress filters: 6142, QoS hardware queues per port: 12, VSTP instances: 253, MAC address entries: 288000, Maximum member ports per LAG: 32, IPv4 routes (Unicast): 128000, LAG groups: 104
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :IGMP, IS-IS, IGMPv3, BGP, Static IP routing, VRRP, IGMPv2, PIM-SM, OSPF, RIP
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SNMP 3, Telnet, TFTP, SNMP 1, SNMP 2, CLI
Features :IP source guard, sFlow v5, Priority-Based Flow Control (PFC), IGMP filtering, Storm Control, Redundant fans, Dynamic ARP Inspection (DAI), VLAN support, Hot swappable fan, VLAN Spanning Tree Protocol (VSTP), DHCP snooping, PIM-SM snooping, Bridge protocol data unit (BPDU), Smoothed Deficit Weighted Round Robin (SDWRR), FCoE support, Port mirroring, Multicast Source Discovery Protocol (MSDP), Proxy ARP, Redundant trunk group (RTG), Loop prevention, Front to back airflow, Quality of Service (QoS), Port filtering, Data Center Bridging Exchange (DCBX) support, MPLS support, DHCP relay, VLAN filtering, Virtual Extensible LAN (VXLAN), Spanning Tree Protocol (STP) support, Cut-through, Rapid Spanning Tree Protocol (RSTP) support, Bidirectional Forwarding Detection (BFD), Weighted Random Early Detection (WRED), Management Information Base (MIB), Private VLAN, Data Center Bridging (DCB), Store and forward, Uplink Failure Detection (UFD), High Availability, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Routed VLAN Interface (RVI)
Compliant Standards :IEEE 802.3x, IEEE 802.1Qaz, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.11
Ports
Qty :48
Type :1 Gigabit / 10 Gigabit SFP+
Ports (2nd)
Qty :4
Type :40 Gigabit / 100 Gigabit QSFP28
Interface Provided
Interfaces :1 x USB 2.0, 2 x management, 48 x 1/10Gbit LAN SFP+, 1 x serial (RS-232), 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Consumption Operational :195 watt
80 PLUS Certification :80 PLUS Silver
Miscellaneous
Color Category :Gray
Rack Mounting Kit :Included
Height (Rack Units) :1
Authentication Method :TACACS+, Secure Shell v.2 (SSH2), RADIUS, Secure Shell (SSH)
Compliant Standards :ICES-003 Class A, VCCI Class A, China RoHS, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, CISPR 24, EN 55032 Class A, CISPR 22 Class A, GR-63-CORE, FCC CFR47 Part 15 A, WEEE, AS/NZS CISPR 22, AS/NZS CISPR32, GR-1089-CORE, IEC 60950-1, BSMI CNS 13438, EN 55022 Class A, CISPR 32 Class A, RoHS, EN55024, EN 300 386, REACH, EN 60825-1, AS/NZS CISPR 32
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :22.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
