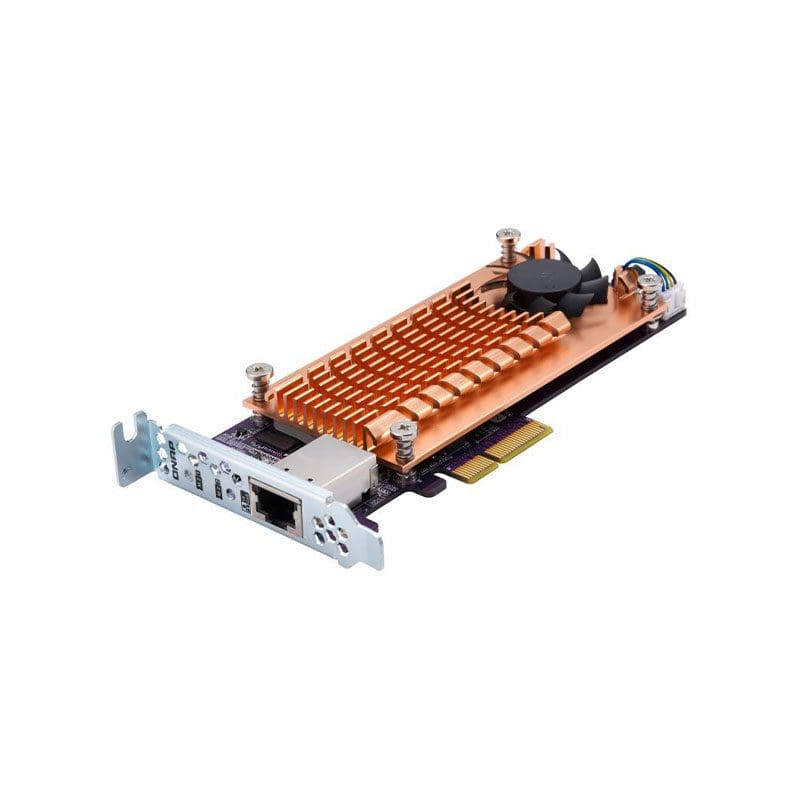

QM2-2P10G1TA Technical Specifications
QNAP Dual M.2 2280 PCI Express 2.0 x4 SSD and Single-port 10GbE Expansion Card
Manufacturer
QNAP
Brand
QNAP
Product Line
QNAP
Model
QM2-2P10G1TA
Packaged Quantity
1
General
Product Type
Storage controller
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 2.0 x4
Low Profile
Low profile
Interface
PCIe
Supported Devices
Solid state drive
Max Storage Devices Qty
2
Expansion Bays
Bays
2 M.2 2280
Interface Provided
Interfaces
1 x 10Gb Ethernet – RJ-45, 2 x PCIe 2.0 x2
Interface Required
Connections
1 x PCIe 2.0 x4
Power Device
Type
None
Miscellaneous
Color Category
Orange
Included Accessories
Flat low-profile bracket, Full-height bracket, Full-profile bracket, Low-profile bracket
Hard Drive Form Factor Compatibility
M.2
Hard Drive Form Factor Compatibility (metric)
M.2
Dimensions & Weight
Width
0.8 inch
Depth
6.2 inch
Height
2.7 inch
Compatibility
Compatible With
QNAP TDS-16489U R2, TS-1232XU, TS-1232XU-RP, TS-1253BU-RP, TS-1263U-RP, TS-1273U-RP, TS-1277, TS-1635, TS-253B, TS-253Be, TS-431XU-RP, TS-453Be, TS-453BT3, TS-463U, TS-463U-RP, TS-473, TS-563 Turbo NAS, TS-653B, TS-677, TS-831X, TS-832X, TS-853BU, TS-853DU-RP, TS-863U, TS-863U-RP, TS-873U, TS-877, TS-877XU-RP, TS-977XU-RP, TS-EC1080 Pro Turbo NAS, TS-EC1280U, TS-EC1280U-RP Turbo NAS, TS-EC880 Pro Turbo NAS, TVS-2472XU-RP, TVS-463 Turbo NAS, TVS-471, TVS-473e, TVS-663 Turbo NAS, TVS-671, TVS-673e, TVS-682T, TVS-863 Turbo NAS, TVS-863+ Turbo NAS, TVS-871, TVS-871U-RP, TVS-872XU, TVS-873e, TVS-882BRT3, TVS-882ST2, TVS-EC1080+ Turbo NAS, TVS-EC1280U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC2480U-SAS-RP, TVS-EC880 Turbo NAS
