QSFP-100G-4WDM40 Juniper QSFP28 100G 4WDM-40 Transceiver

QSFP-100G-4WDM40 Technical Specifications

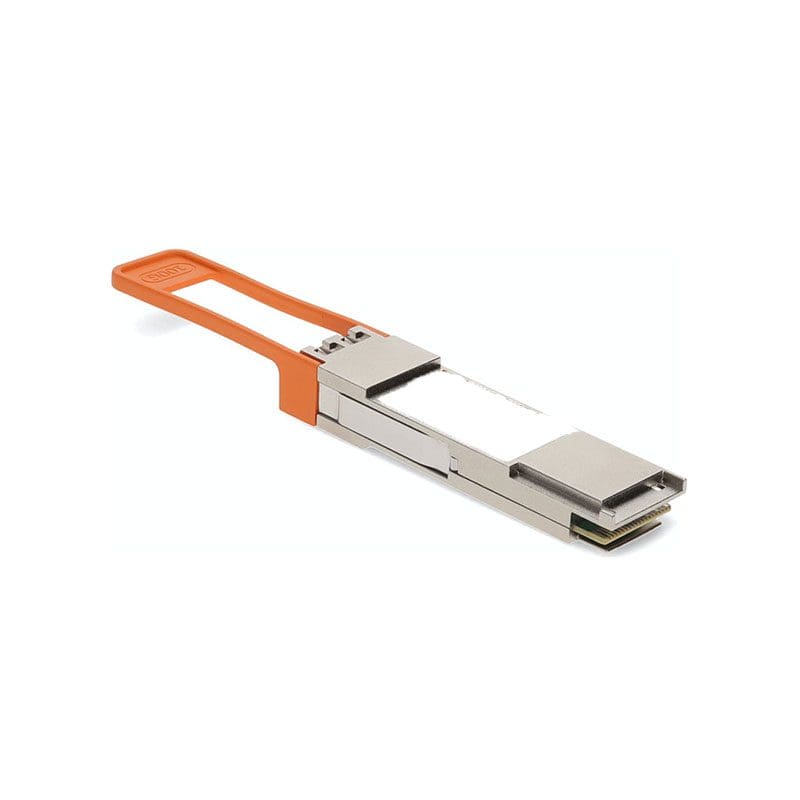

Juniper Networks QSFP28 100G 4WDM-40 Pluggable Transceiver

Product Name: QSFP28 100G 4WDM-40 Pluggable Transceiver
Manufacturer Part Number: QSFP-100G-4WDM40
Product Type: QSFP28
Ethernet Technology: 100 Gigabit Ethernet
Media Type Supported: Optical Fiber
Network Technology: 100GBase-X
Environmentally Friendly: Yes
Interfaces / Ports Details: 1 x 100GBase-X Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Signaling rate, each lane: 25.78125 GBd +/- 100 ppm
Transmitter fibers: 1
Transmitter wavelengths (range): 1294.53 nm through 1296.59 nm, 1299.02 nm through 1301.09 nm, 1303.54 nm through 1305.63 nm, 1308.09 nm through 1310.19 nm
Receive lane wavelengths (range): 1294.53 nm through 1296.59 nm, 1299.02 nm through 1301.09 nm, 1303.54 nm through 1305.63 nm, 1308.09 nm through 1310.19 nm
