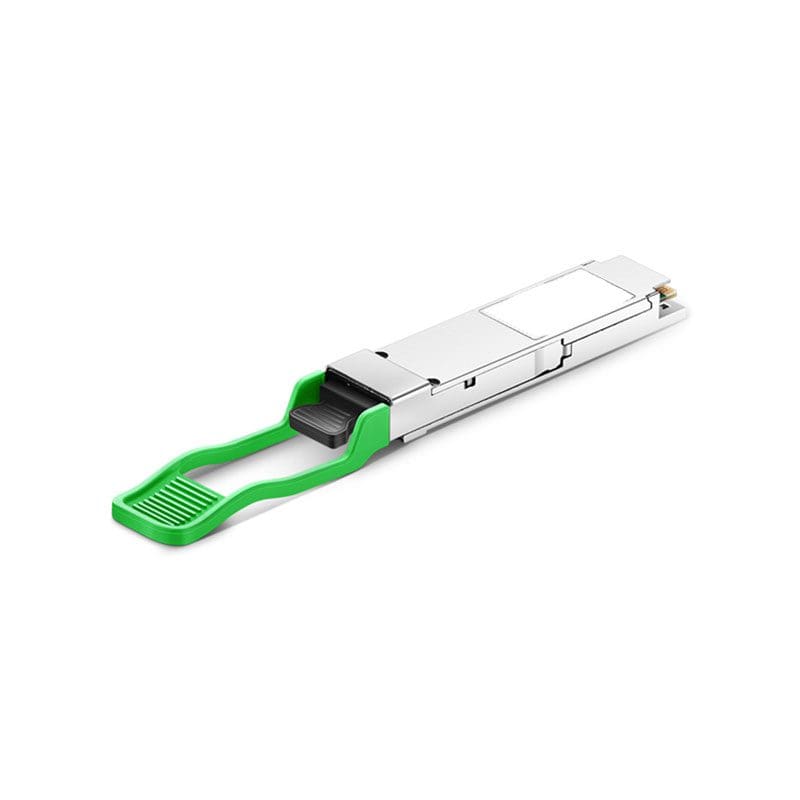

QSFP-100G-CWDM4-ET Juniper 100GE CWDM4 Module

QSFP-100G-CWDM4-ET Technical Specifications

Juniper Networks Extended Temperature Capable 100GE CWDM4 Optics Upto 85C

Product Name: Extended Temperature Capable 100GE CWDM4 Optics Upto 85C
Manufacturer Part Number: QSFP-100G-CWDM4-ET
Product Type: Expansion Module
Ethernet Technology: 100 Gigabit Ethernet
Media Type Supported: Optical Fiber
Network Technology: 100GBase-CWDM4
Environmentally Friendly: Yes
Interfaces / Ports Details: 1 x 100GBase-CWDM4 Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Transmitter fibers: 2
Transmitter wavelengths (range): 1264.5 nm to 1277.5 nm, 1284.5 nm to 1297.5 nm, 1304.5 nm to 1317.5 nm, 1324.5 nm to 1337.5 nm
Receive lane wavelengths (range): 1264.5 nm to 1277.5 nm, 1284.5 nm to 1297.5 nm, 1304.5 nm to 1317.5 nm, 1324.5 nm to 1337.5 nm
