QSFP-100G-FR Technical Specifications

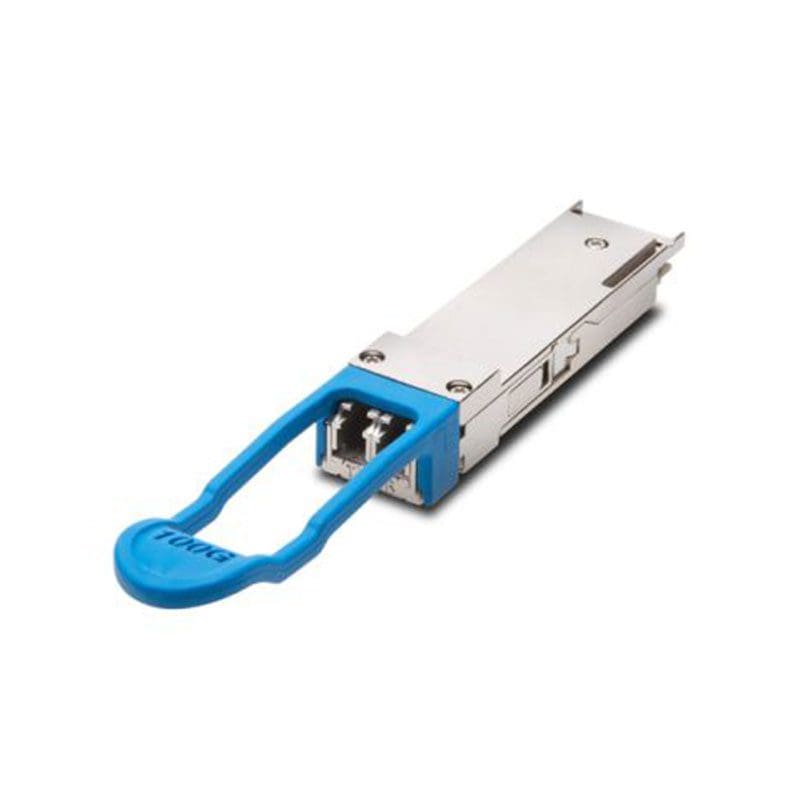

Juniper Networks QSFP28 100G FR Transceiver
Product Name: QSFP28 100G FR Transceiver
Manufacturer Part Number: QSFP-100G-FR
Product Type: QSFP28
Ethernet Technology: 100 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 100GBase-X
Environmentally Friendly: Yes
Interfaces / Ports Details: 1 x 100GBase-X Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Supported applications: 100G-FR or 100GBASE-FR1 (clause 140), CAUI-4 (no FEC)
Signaling rate, each lane: Host lane: NRZ; 25.78125 GBd ± 100 ppm, Media lane: PAM4; 53.125 GBd ± 100 ppm
Transmitter fibers: 1
Transmitter wavelengths (range): 1304.5 nm to 1317.5 nm
Receive lane wavelengths (range): 1304.5 nm to 1317.5 nm
Transmitter output power, each lane (minimum): -2.4 dBm
