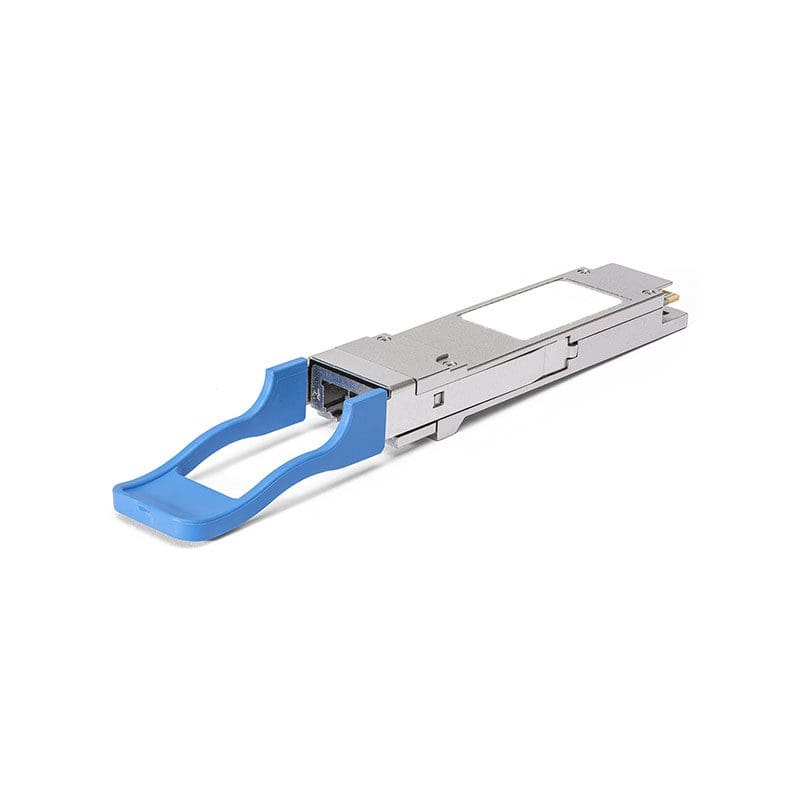

QSFP-100G-LR4-C Technical Specifications
Juniper Networks QSFP28 Transceiver Module 100 Gigabit Ethernet
Manufacturer :Netscreen
Brand :Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :QSFP28 Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-SR4
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Optical Wave Length :1294.53-1296.59 nm / 1299.02-1301.09 nm / 1303.54-1305.63 nm / 1308.09-1310.19 nm
Max Transfer Distance :6.2
Features :Digital Optical Monitoring (DOM) support
Connectors (for SD)
Left Connector Type :LC/UPC
Interface Provided
Interfaces :1 x Ethernet 100GBase-SR4 – LC/UPC
Miscellaneous
Compliant Standards :IEEE 802.3ba-2010
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Compatibility
Compatible With :Juniper Networks EX9253 Routing Engine, SRX4600 Services Gateway ¦ Juniper Networks 5G Universal Routing Platform MX10003 ¦ Juniper Networks ACX Series Universal Metro Router ACX5448,
