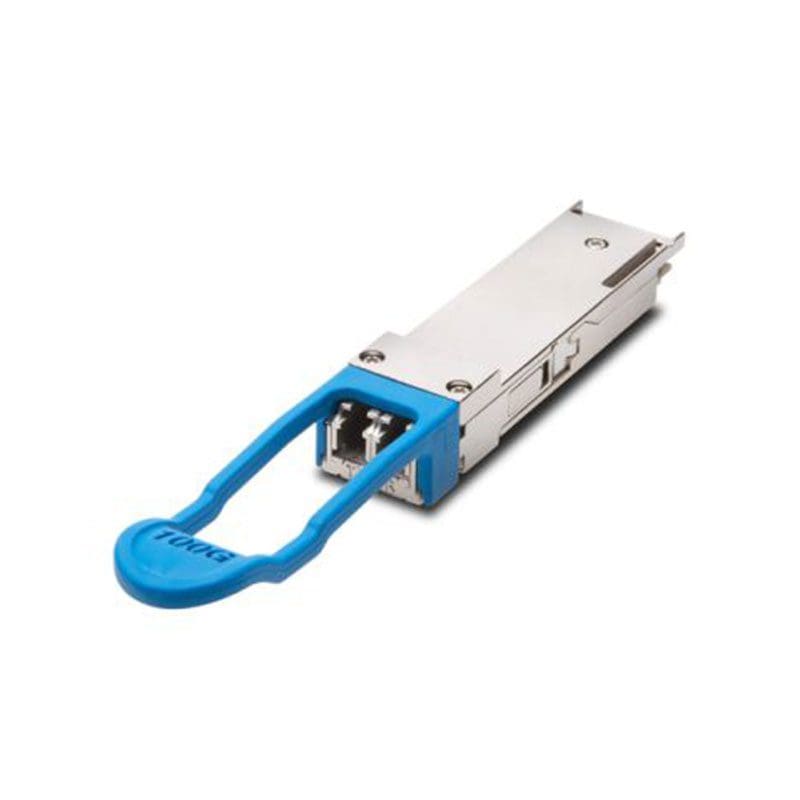

QSFP-100G-LR4-T2 Technical Specifications
Juniper Networks 100G-LR4 Ethernet Only QSFP28 Module Type
Media Type: Single-Mode Fiber (SMF)
Connectors: Double LC
TX Wavelength: LAN WDM 1310nm
RX Wavelenght: LAN WDM 1310nm
Minimum Optical Budget: 6.6 dB
Maximum Distance: 10km
Supported Data Rate: 103.125 Gbps
Supported Applications: 100G Ethernet (103.125Gbps)
DDM/DOM: Supported
CDR (Clock and Data Recovery) chip Supported
Forward Error Correction (FEC): Host FEC Supported
Transmitter Type: EML LAN WDM TOSA
Minimum Transmitting Power: Each Lane -4.3 dB
Tx Wavelength Bandwidth:
Maximum Transmitting Power: Each Lane 4.5 dB
Average Launch Power (Min) Each Lane: -4 dBm
Receiver Sensitivity: Each Lane -8.6 dBm
Average Launch Power (Max) Each Lane: 4.5 dBm
Extinction Ratio (Min): 4 dB
Receiver Type: PIN ROSA
Rx Wavelength Bandwidth:
Receiver Overload: 3.3 dBm
