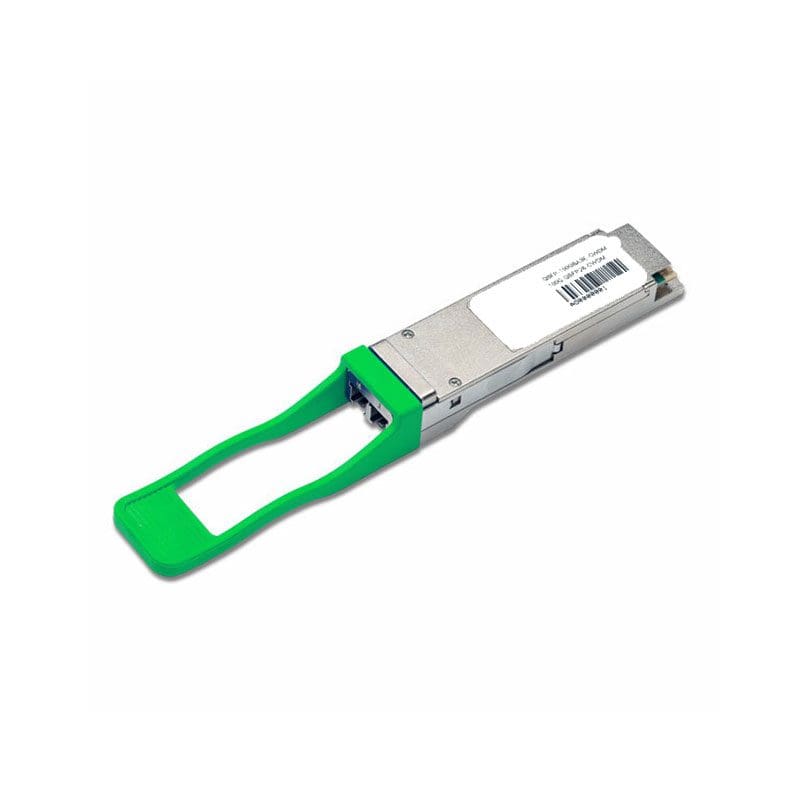

QSFP-100GBASE-CWDM Juniper QSFP28, 100GBASE-CWDM4 Module

QSFP-100GBASE-CWDM Technical Specifications

Juniper Networks QSFP28, 100GBASE-CWDM4 Transceiver

Manufacturer: Juniper
Manufacturer Part Number: QSFP-100GBASE-CWDM
Brand Name: Juniper
Product Name: 100GBASE-CWDM4 QSFP28 Transceiver
Product Type: QSFP28
Technical Information
Application/Usage Data Networking, Optical Network
Interfaces/Ports
Interfaces/Ports Details: 1 x LC 100GBase-CWDM4 Network
Media & Performance
Media Type: Supported Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-CWDM4
Miscellaneous
Compatibility MSA Compliant
Environmentally Friendly: Yes
Environmental Certification: RoHS
Diagnostic support: Yes
Signaling rate, each lane: 25.78125 ± 100 ppm
Transmitter output power, each lane (minimum): –6.5 dBm
Transmitter output power, each lane (maximum): 2.5 dBm
Receiver input power, each lane (minimum): –11.5 dBm
Receiver input power, each lane (maximum): 2.5 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Fiber grade: SMF
Distance: 2 km
