R1204 Technical Specifications

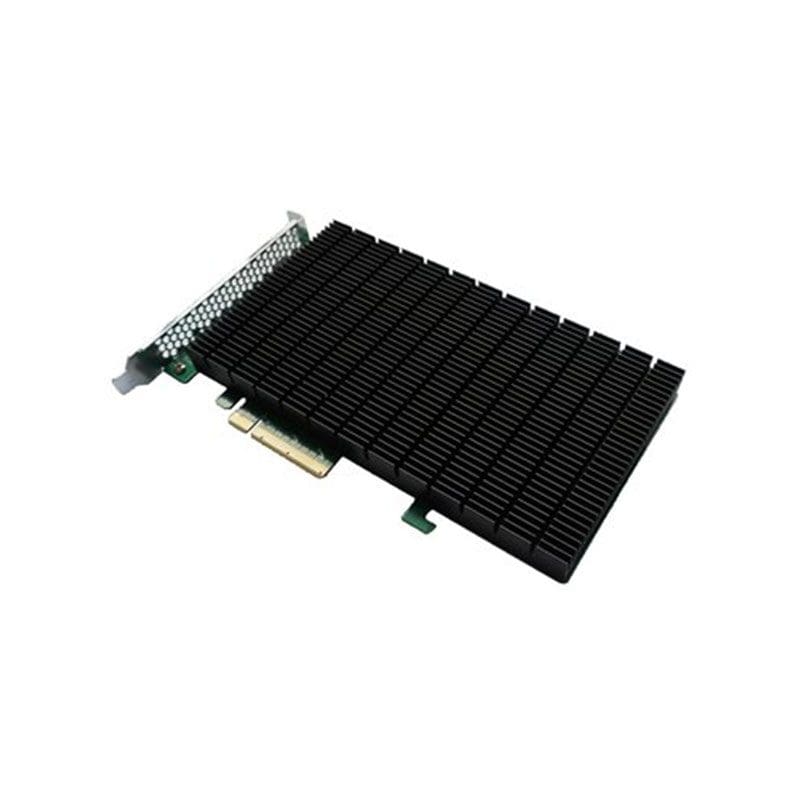

HighPoint R1000 Series Storage Controller M.2 NVMe Card PCIe 3.0 x8
Brand : HighPoint
Manufacturer Part Number : R1204
Performance
Device Type Storage controller – plug-in card
Hard Drive Form Factor Compatibility M.2
Host Bus PCIe 3.0 x8
Storage Controller
Interface M.2 NVMe Card
Data Transfer Rate 8 GBps
Supported Devices Disk array (RAID), solid state drive
Channel Qty 4
Max Storage Devices Qty 4
RAID Level RAID 0
Expansion / Connectivity
Interfaces 4 x M.2 Card (internal)
Connections 1 x PCIe 3.0 x8
Miscellaneous
Features Fanless, full-height, bootable, full-length
MTBF 920,585 hours
Compliant Standards FCC, RoHS, WEEE, REACH
Power
Power Consumption Operational 7.65 Watt
Software / System Requirements
OS Required Windows 10 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2019, Apple macOS 10.13 or later, FreeBSD 12.1 or later
Dimensions & Weight
Width 0.7 in
Depth 7.7 in
Height 4.4 in
Weight 22.22 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
