R1DNH Technical Specifications

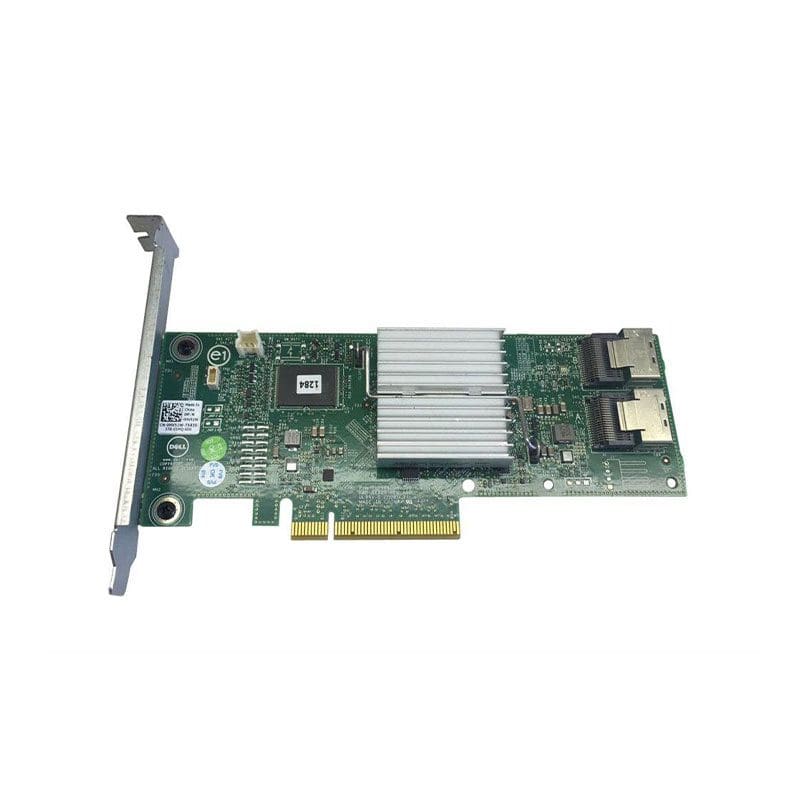

Dell H310 PCI Express Low Profile Controller Card
Part Number : R1dnh
Manufacturer : Dell
Technical Specifications:
Category : Dell Controller
Sub-category : Raid Controller
Generation : Pci-express
Device Type : Storage Controller (raid) – Plug-in Card
Interface Type : Pci Express 2.0 X8
Data Transfer Rate : Up To 6gb/s Per Port
Connectors : Two X4 Internal Mini-sas Sff8087
Form Factor : 4s/2u
Raid Controller : Raid 0 1 5 10 50
Sas Controller : Lsi Sas 2008
Pci Voltage : +12v +10%
Pci Card Type : 3.3v Add-in Card
