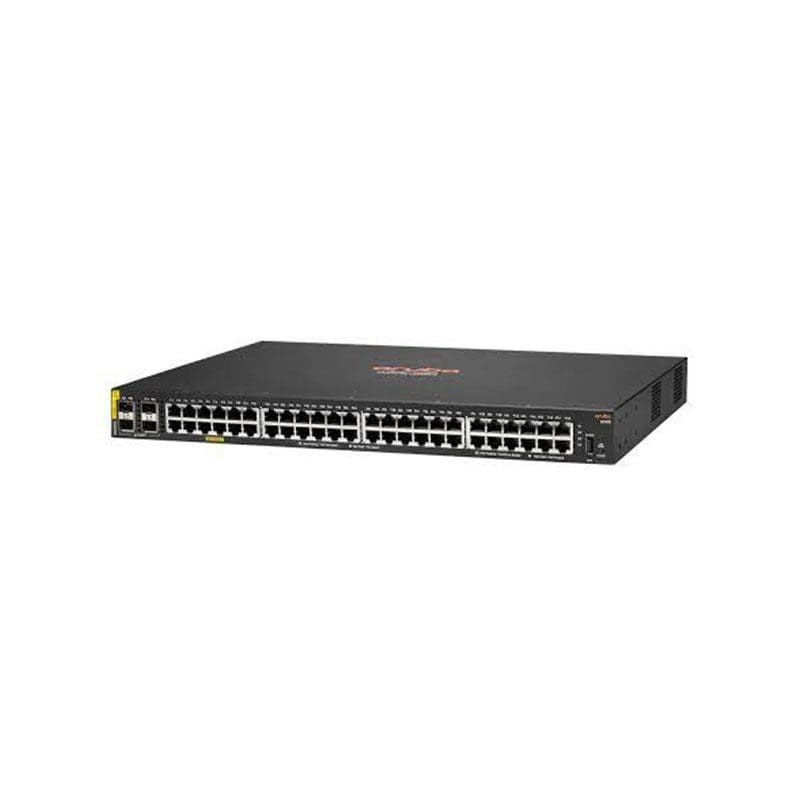

R8N85A HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch

R8N85A Overview

Features: Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing.

$1,099

Buy Now
GTIN: 190017559735
Availability: In Stock
SKU:R8N85A
Brand:

R8N85A Technical Specifications

HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch

Manufacturer: HPE Aruba
Manufacturer Part Number: R8N85A
Key Feature:
Device Type: Switch – 48 Ports – Managed – Stackable
Enclosure Type: Side To Side Airflow Rack-mountable 1u
Subtype: Gigabit Ethernet
Ports: 48 X 10/100/1000 (poe+) + 4 X Gigabit Sfp
Power Over Ethernet (poe): Poe
Poe Budget: 370 W
Performance: Packet Buffer Size: 12.38 Mb Throughput: 77.3 Mpps , Switching Capacity: 104 Gbps , Latency (1 Gbps): 1.9 Us
Capacity: Switched Virtual Interfaces (svis): 16 , Arp Entries: 1024 , Ipv4 Routes (unicast): 512 , Ipv6 Routes (unicast): 512 , Igmp Groups: 512 , Mld Groups: 512 , Ipv4 Acl Entries (ingress): 256 , Ipv6 Acl Entries (ingress): 128 , Mac Acl Entries (ingress): 256
Mac Address Table Size: 8192 Entries
Jumbo Frame Support: 9198 Bytes
Routing Protocol: Igmpv2, Igmpv3
Remote Management Protocol: Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius
Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Power: Ac 100-240 V (50/60 Hz)
Flash Memory: 16 Gb
Ram: 4 Gb Ddr3 Sdram
Processor: 1 X Arm A9: 1.016 Ghz
Expansion / Connectivity:
Interfaces:
48 X 10/100/1000 Base-t Rj-45 Poe Class 4 – 370 W
4 X Gigabit Lan Sfp
1 X Usb Type A
1 X Usb-c Console
Power:
Power Device: Internal Power Supply
Voltage Required: Ac 100-240 V (50/60 Hz)
Power Consumption Operational: 45 Watt
