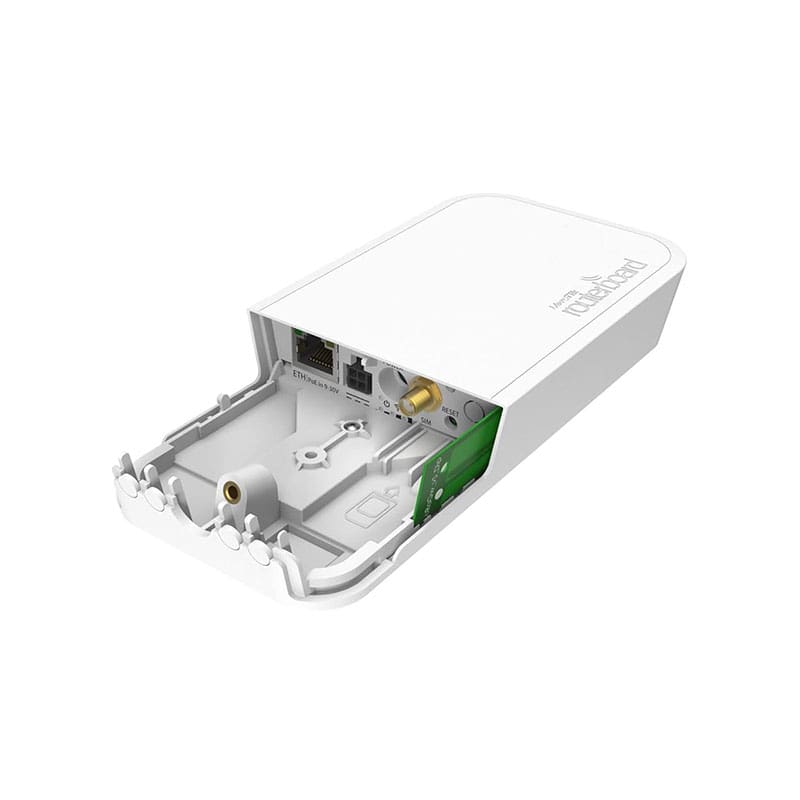

RBwAPR-2nD&R11e-LR9 MikroTik 902-928 MHz 2.4 GHz
RBwAPR-2nD&R11e-LR9 Overview
MikroTik R11e-LoRa9 and wAP LoRa9 kit supports 902-928 MHz 2.4 GHz WLAN interface. wAP LR9 kit also known as an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
$206
RBwAPR-2nD&R11e-LR9 Technical Specification
MikroTik R11e-LoRa9 and wAP LoRa9 kit supports 902-928 MHz 2.4 GHz WLAN interface
Manufacturer: MikroTik
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
License level: 4
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 60°C
Powering
PoE in: Passive PoE
PoE in input Voltage: 9-30 V
Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage: 9-30 V
Automotive input Voltage: 9-30 V
Max power consumption: 7 W
Wireless
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
10/100 Ethernet ports: 1
Peripherals
Number of SIM slots: 1 Modem (Mini SIM)
MiniPCI-e slots: 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
