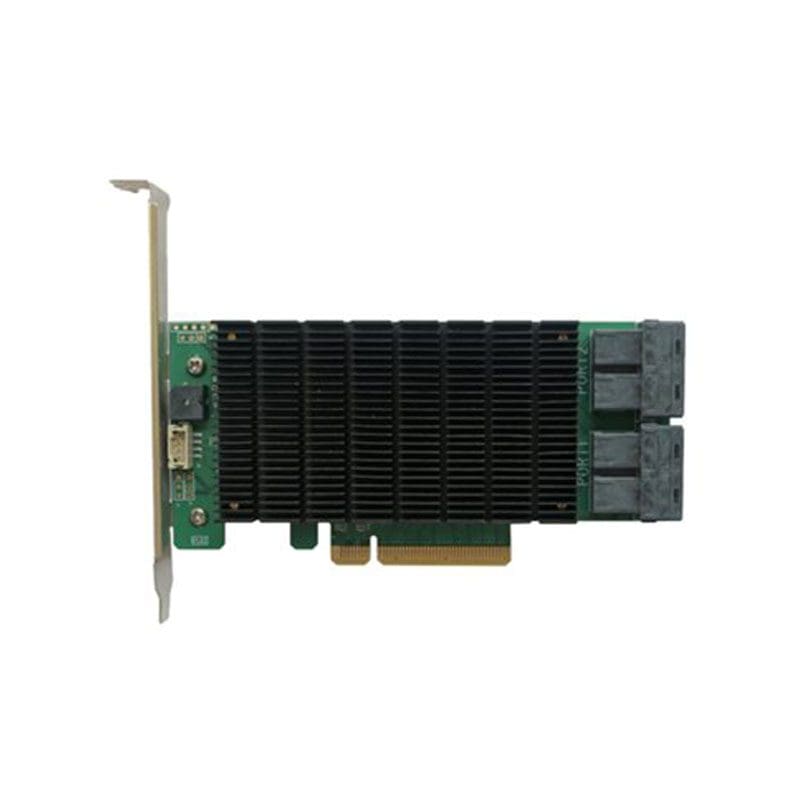

RR3740C HighPoint RocketRAID Storage Controller (RAID) SATA PCIe

RR3740C Technical Specifications

HighPoint RocketRAID 3740C Storage Controller (RAID) SATA 6Gb/s / SAS 12Gb/s PCIe 3.0 x8

Brand : HighPoint
Manufacturer Part Number : RR3740C
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Hard drive, disk array (RAID), solid state drive
Channel Qty 16
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD
General
Device Type Storage controller (RAID) – plug-in card – low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s / SAS 12Gb/s – Mini SAS HD (SFF-8643) (internal)
Connections 1 x PCIe 3.0 x8;
