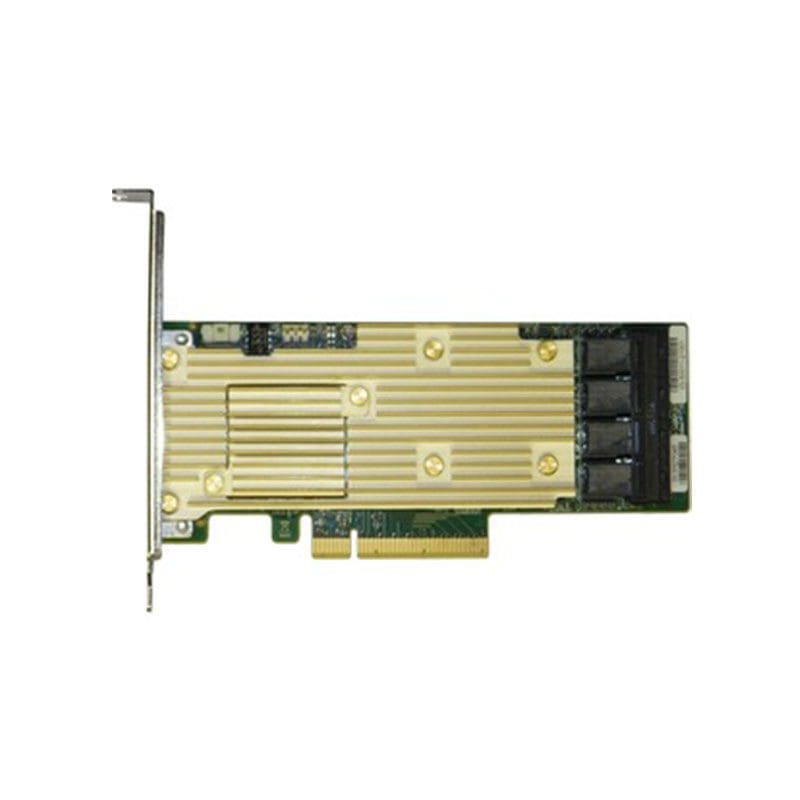

RSP3TD160F Technical Specifications
Intel 16 Port SATA 6Gbps / SAS 12Gbps RAID 0 1 5 6 10 50 JBOD 60 PCI Express 3.0 x8 RAID Controller
Manufacturer Part Number RSP3TD160F
Brand Name Intel
Product Type NVMe Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
10
5
50
6
60
JBOD
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 16
Number of SAS Ports (Internal) 16
Number of SAS Ports (External) 0
SAS Connector Details 4 SFF-8643
Physical Characteristics
Form Factor Plug-in Card
Miscellaneous
Platform Supported Linux
PC
