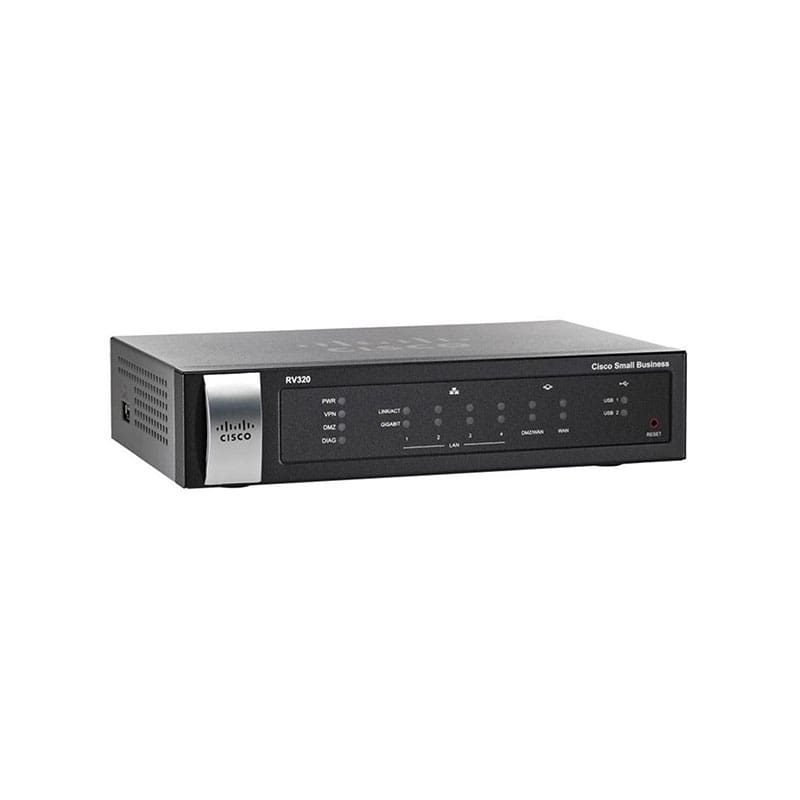

RV320-K9-G5 Technical Specifications
Cisco Dual Gigabit WAN VPN Router
Management protocols:
– Web browser (HTTP/HTTPS)
– Simple Network Management Protocol (SNMP) v1, v2c, and v3
– Bonjour
Event logging:
– Local log
– Syslog
– Email alert
– Short Message Service (SMS)
Upgradability:
– Firmware upgradable through the web browser
– Import or export configuration filesfrom or to a USB flash drive
System Specifications
Product dimensions (W x H x D): 206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in)
Ports:
– Four 10/100/1000 Gigabit Ethernet RJ-45 ports
– One 10/100/1000 Gigabit Ethernet RJ-45 Internet (WAN) port
– One 10/100/1000 Gigabit Ethernet RJ-45 DMZ/Internet (WAN) port
Power supply: 12V 1.5A
Certification: FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
Operating temperature: 0° to 40°C (32° to 104°F)
Storage temperature: 0° to 70°C (32° to 158°F)
Operating humidity: 10% to 85% noncondensing
Storage humidity: 5% to 90% noncondensing
Interfaces
WAN: 1 × 1 GbE
LAN: 4 × 1 GbE (1 optionally available for WAN connectivity)
USB: 1 × USB 2.0 for 3G/4G failover (supported devices)
Performance
Stateful firewall throughput: 200 Mbps
VPN throughput: 70 Mbps
Recommended for small branches (up to 50 users)
Power
Single 18W power supply
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 5 to 95% non-condensing
