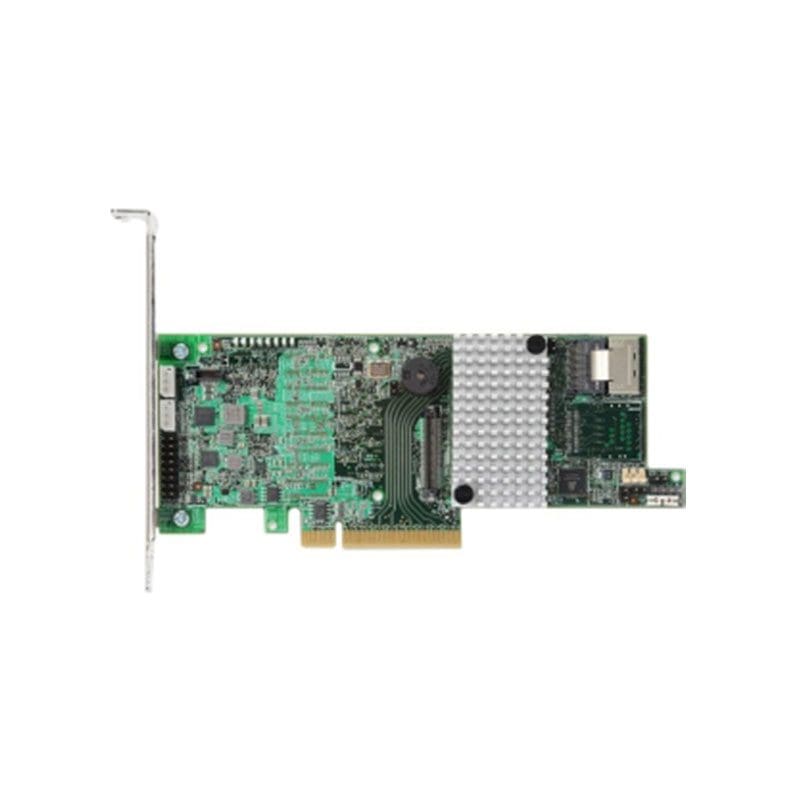

Sas9266-4i technical Specifications
LSI LOGIC Sgl 6gb/s 4-port Int Pci-e Sata+sas Raid Controller
Product Type : Sas Controller
Controller Interfaces Type : Serial Attached Scsi (sas) . Serial Ata/600
Bus Type: Pci Express 2.0 X8
Data Transfer Rate: Up To 6gb/s Per Port
Raid Supported: Yes
Raid Levels: raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Drive Supported: Up To 128
Supported Devices: Hard Drive, Disk Array (raid), Solid State Drive
Platform Supported: Pc . Sparc
Data Backup Type: Battery Backup
Standard Memory: 1gb Ddr3 Sdram (1333mhz)
Ports: 1 X Sff-8087 Mini 6gb/s Sas – Mini-sas Internal
