SAS9400-16I Broadcom 12gb/s Sas/sata/nvme Tri-mode Pcie Hba
SAS9400-16I Overview

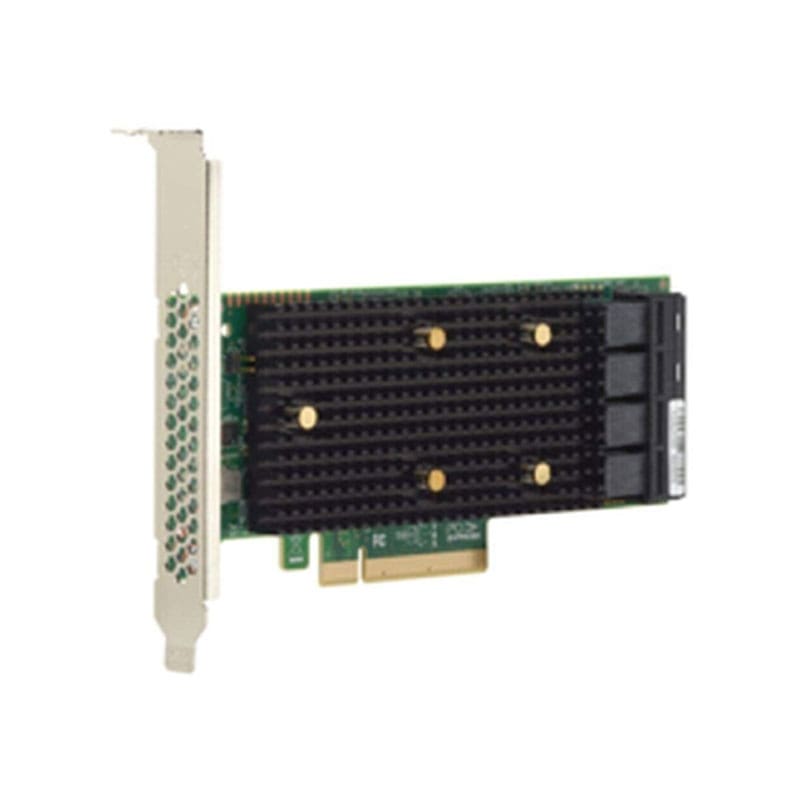

Broadcom SAS9400-16I is a Tri-Mode PCIe Host Bus Adapter (HBA) that supports SAS, SATA, and NVMe protocols, and provides connectivity for up to 16 devices. It is designed for high-performance computing environments and enterprise-level applications, enabling efficient data transfer between servers and storage devices.
$650
SAS9400-16I Technical Specifications
Broadcom 12gb/s Sas/sata/nvme Tri-mode Pcie Hba
Brand Name: Broadcom
Product Type: Controller
Product Name: SAS-SATA
Specifications
Host Bus Type X8 Lane Pci Express® 3.1
Internal Connectors 4 Mini-sas Hd X4 Sff-8643
Internal Ports 16
Operating Temperature 10° To 55° C
Operating Voltage +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux, Vmware.
Pci Power Typical: 11.95w
Cable Support Passive Copper
I/o Controller Sas3416
Mtbf > > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-condensing
